2022 Brussels Airport 2x5 65 inch splicing display unit
Time:2022-11-03
Views:14
Case category: 65inch 3.5mm splicing wall lcd screen display
Screen size: 2 * 5 65 ‘‘ LCD
Movement resolution: 1920 * 1080
Project scale: $40000-$140000
Project location: Europe Belgium
Completion date: November 2022
Responsible company:Shenzhen Yameishi Technology Co.,Ltd
Application category: security monitoring / command and control

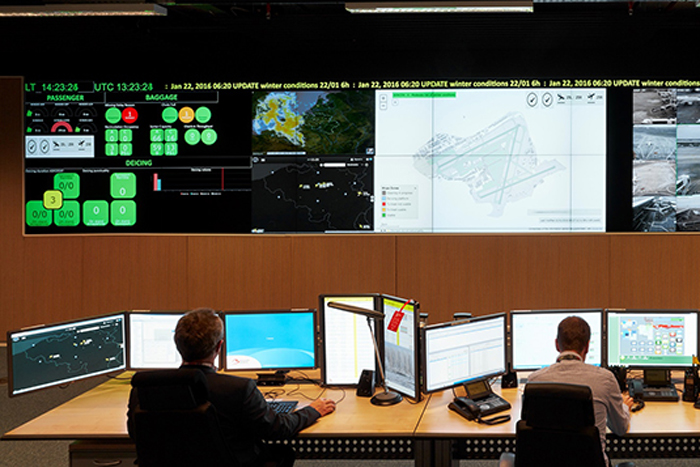

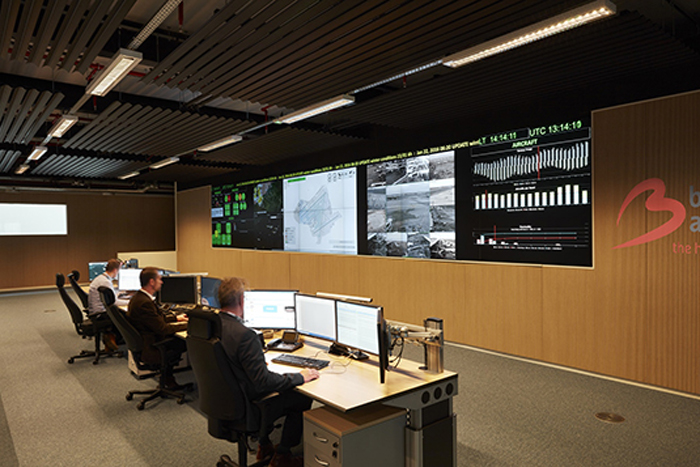

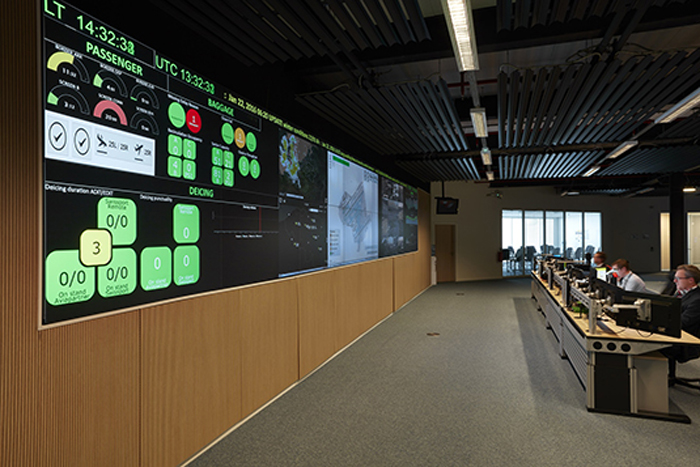

The airport operations center (APOC) centrally uses a range of different operational services at Brussels Airport (Belgium), such as security, baggage tickets and flight control. To ensure that each APOC operator can pay close attention to the real-time situation, Brussels Airport is equipped with a networked APOC Barco visualization solution. The whole screen adopts 2x5 65 inch splicing display unit.
Brussels Airport splicing screen Monitor Feature:
1.High brightness, high color gamut, high contrast, high resolution to ensure perfect display effect
2.Using the new ultra-wide viewing angle extension technology to ensure that the image is not deformed and the color is not distorted within the horizontal and vertical viewing angles of 178°
3.Ultra-narrow stitching, almost seamless displav effect
4.Abundant built-in signal interfaces to meet various needs
5.Simple modular design, special back cover design, easy installation and maintenance
6.Implement monitoring of airport environment dynamics, large screen HD display◆ Menu Language： Chinese,English, Multi-lan
7 Embedded 3D video brightness circuit section, 3D progress scan, 3D digital signal noise reduction, change normal interlaced scan signal PAL/NTSC into progress scan.
8 Start time less than 8 second, it can guarantee no training
9 Super silence cooled fan design for longer life of the whole machine
10 The processor adopts motion detection and compensation calculation, interpolation operation and clutter signal suppression, etc, top process technology.
11 Adopt ultra-thin tamper-proof out case, radiation-less
12 Support 7*24 hours, 365 days of continuous power-on, high reliability and high stability, back-light life up to 60,000 hours.
LCD Product performance
1.Back-light adopt LED source display technology, the contrast ratio up to 4000:1, 10000K color temperature, special designed for video display, high definition, high brightness, can display perfectly even if under sunshine
2.Use industrial-grade professional DID LCD splicing screen, designed for industrial monitoring and multimedia information display to achieve signal splicing display and achieve signal split display, windowing, superimposing, cross screen, zooming and other special displays.
3:All signals can connected to 10 screen wall through samplex image processor and matrix
4:Ultra-narrow border design, bilateral seam is equal to 3.5mm, border compensation function, images are real-time display and loss-less
5: High resolution ratio, unit supports driving 1920X1080 LCD screen
6.Various of splicing mode, Horizontal placement or vertical placement.
7.Automatic check temperature and cooled by fan or healed.
9.Integrate multi-channal video signal type: HDMI, DVI, VGA, CVBS (composite video),support PC image signal and can connect to IT
10.Support the transmission and display in the network, optional internal high definition media player
|
LCD Technology
|
Original BOE LCD
|
|
Active Screen Diagonal
|
65" (YMS-650VD)
|
|
Panel Dimension(WxH)
|
1432.6 × 807.6mm
|
|
Total Bezel Width
|
3.5mm
|
|
Aspect Ratio
|
16:9
|
|
Physical Resolution
|
1920*1080
|
|
Backlight System
|
WLED
|
|
Luminance(nits)
|
500cd/m2
|
|
Contrast
|
1200:1 (type.)
|
|
Viewing Angle
|
89/89/89/89
|
|
Display Colors
|
8Bit,16.7M
|
|
Response Time
|
<=6ms
|
|
Life(hrs)
|
>60,000(hrs)
|
|
Surface
|
Anti-glare
|
|
Standby Power Consumption
|
<3W
|
|
Maximum Power Consumption
|
<=160W
|
|
Power Supply
|
AC100~240V 50/60 HZ
|
|
Cooling
|
Low noise fans
|
|
Working Time Capacity
|
7x24x365hours
|
|
Digital signal input
|
HDMI×1 1920x1080@60Hz backward compatible
|
|
Computer signal input
|
VGA(DB-15) ×1 1920x1080@60Hz backward compatible
|
|
Digital signal input
|
DVI(DVI-I)×1 1080P(1920×1080) backward compatible
|
|
RS232 input
|
1
|
|
RS232 output loop
|
2
|
|
Computer centralized control interface
|
RS232
|
|
Working temperature
|
0℃～ 50℃
|
|
Storage temperature
|
-20℃～ 65℃
|
|
Working Humidity
|
20%-80%
|
