Digital Signage kiosk

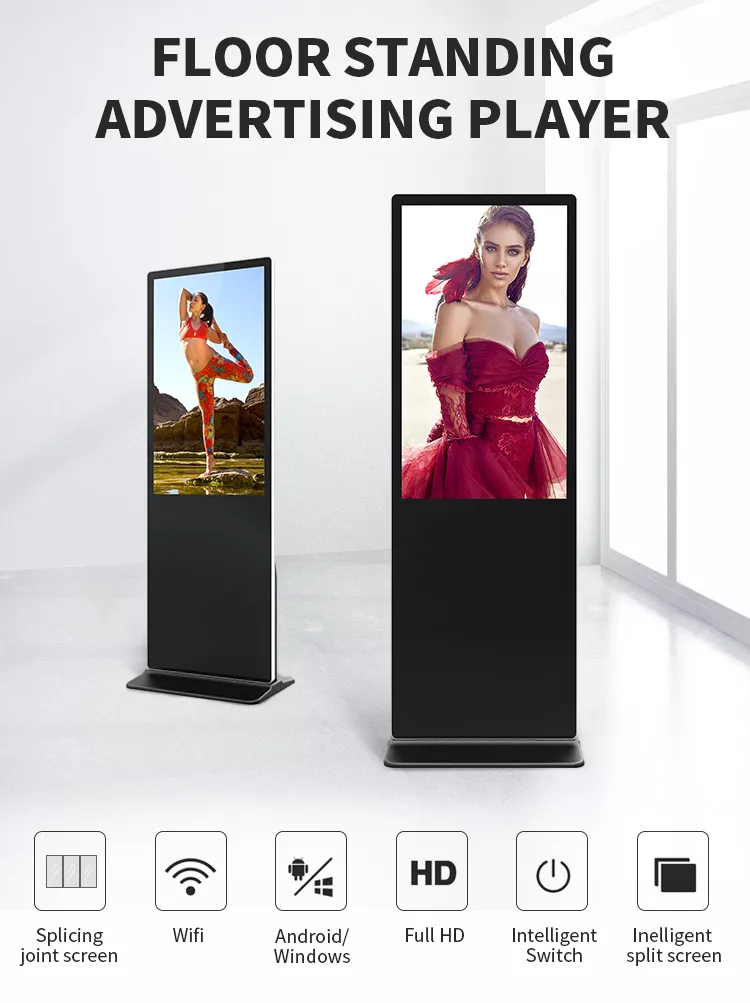

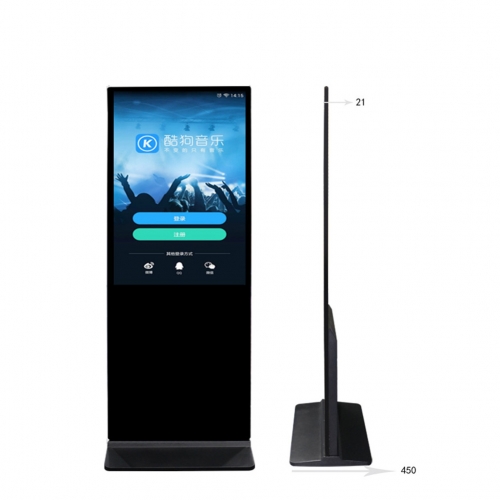

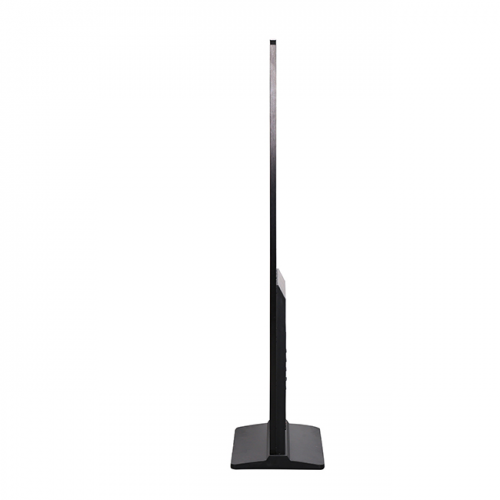

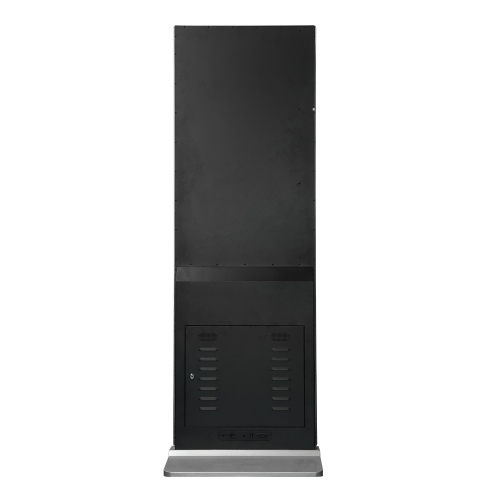

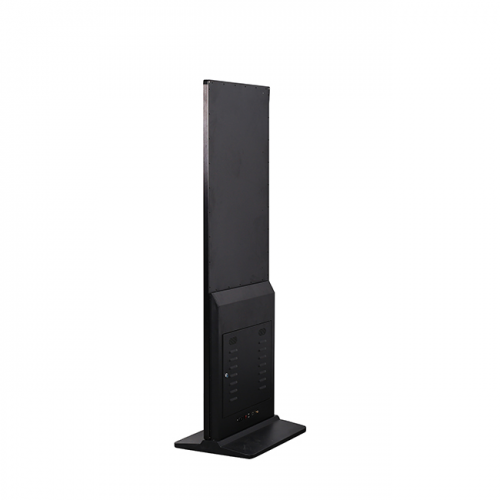

49inch super slim Android wifi LCD digital signage indoor Standing Kiosk advertising Display
Delivery time:5-15 working day
Price term: EXW Shenzhen
-
49‘‘ vertical LCD digital signage advertising screen with android wifi and CMS software
Screen Specification：Refresh frequency: 60HzSignal system: LVDS (2, CH, 10-bit), terminal, 51 pinsSupply voltage: 110V 220V (Typ.)Maximum rating: storage temperature: -20 ~ 60 degrees C operating temperature: 0 ~ 50 degrees CScreen type: LCD module, a-Si TFT-LCD.Pixel configuration: RGB vertical stripAppearance size: 975.5 * 582.2 * 10.5 (H * V * D)Surface treatment: Fog (Haze 3%), Hard, coating (1H)Contrast: 1100: 1 (Typ.) [transmission]Optical mode: IPS, often black display, transmission typeResponse speed: 6 (Typ.) (G, to, G) MSBacklight type: WLED, 80K hours, no drive
Android 5.1/7.1/8.1/9.0 OSHardware parameters
CPU
RK3288, quad-core ARM-A17,1.8GHz
GPU
Mali-T764
RAM
DDR 2GB
Built-in memory
EMMC 8G
operating system
Android 7.1 system and two kinds of systems 8.1
Decoding resolution
It supports up to 2160P
Video Format
Support RM / RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4, etc.
Image Format
It supports BMP, JPEG, PNG, GIF, etc.
Play Mode

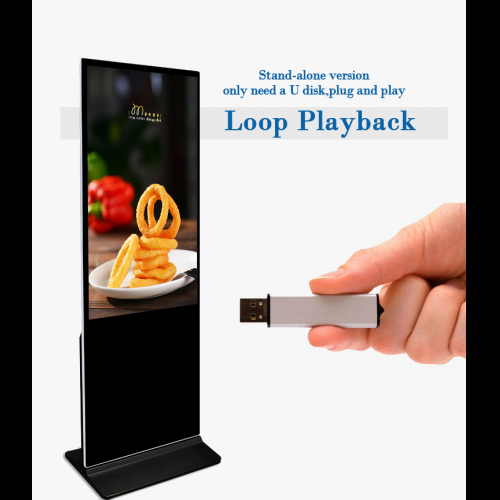

Support loop, timing, and other multi-player mode stream
Network Support
LAN Ethernet, WiFi, BT, 4G mobile network
RTC Real Time Clock
stand by

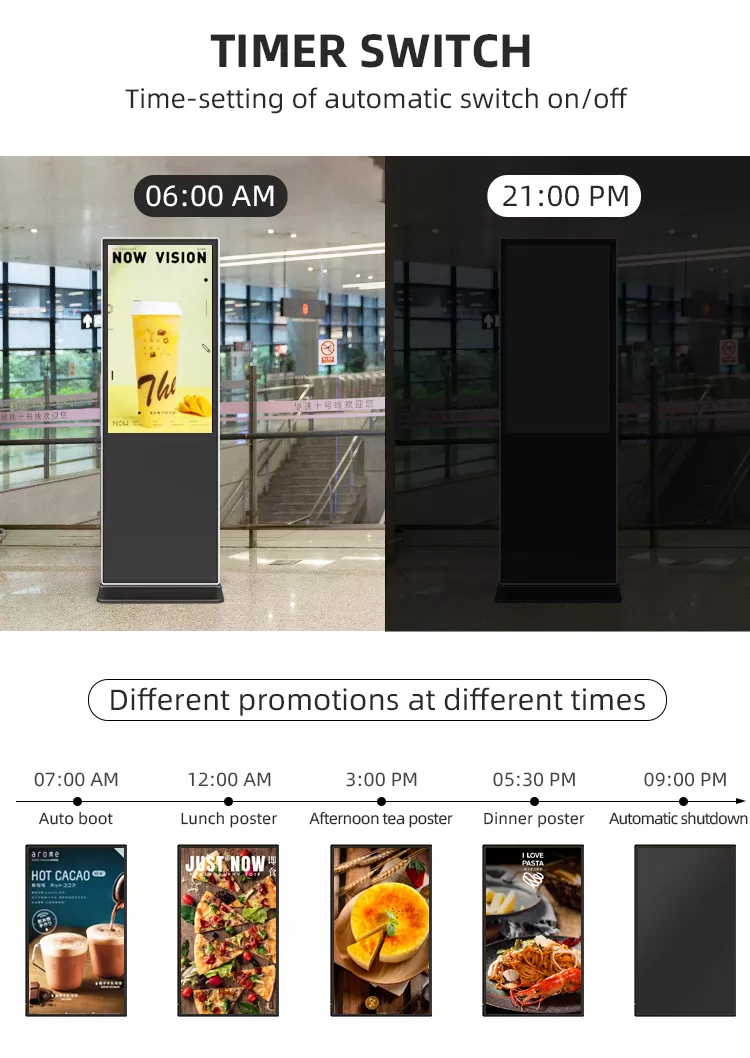

Timer switch
stand by
System Upgrade
Support network upgrade, USB / TF card upgrades, computer upgrades
Speaker
2*5W

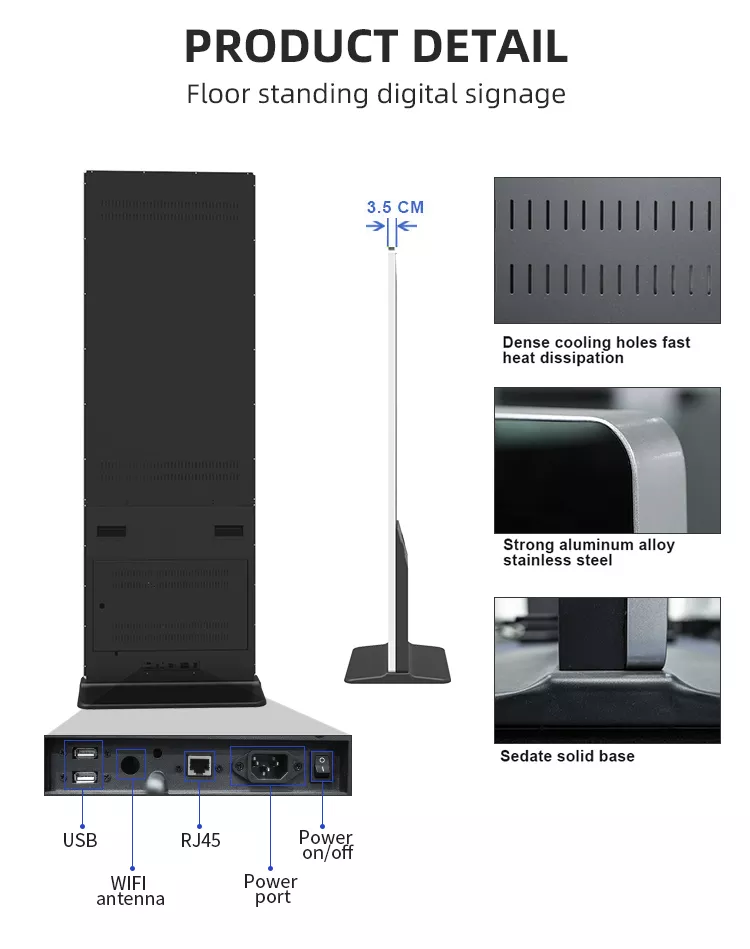

Hardware interface
power supply
12V / DC input
HDMI
HDMI2.0 supports up to 4K @ 60HZ output
LVDS
Dual 8 LVDS + backlight output interfaces up to 1920X1080
EDP
EDP output of up to 1920X1080
MIPI
2 / a MIPI-DSI-20PIN-FPC, 1 th MIPI-CSI-30PIN-FPC
USB
5, 4 HOST USB, 1 Ge OTG USB
storage card
TF memory card
Serial ports
3, two TTL level serial port, a serial port debugging
IIC
1, IIC Interface (3.3V)
IO port
4, IO interfaces (3.3V)
Remote control and the lamp
1, remote control 1, the red A green light
Ethernet
10M / 100M adaptive Ethernet
wireless network
Support WIFI-2.4G (Scalable BT-4.1)
mobile network
Support 4G mobile network (requires external module and SIM card)
horn
Support loudspeaker interface, supports up to two 8Ω5W speaker output
Audio frequency
Support left and right channels, MIC Interface

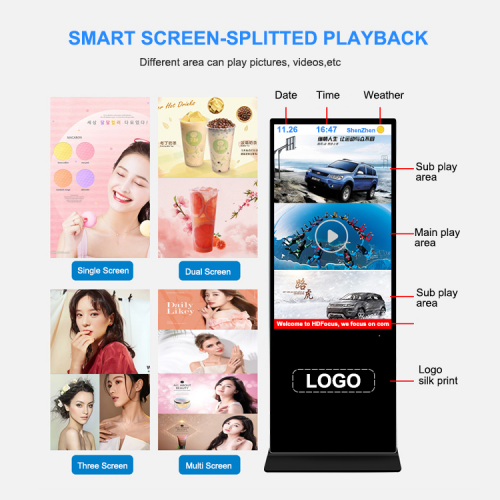

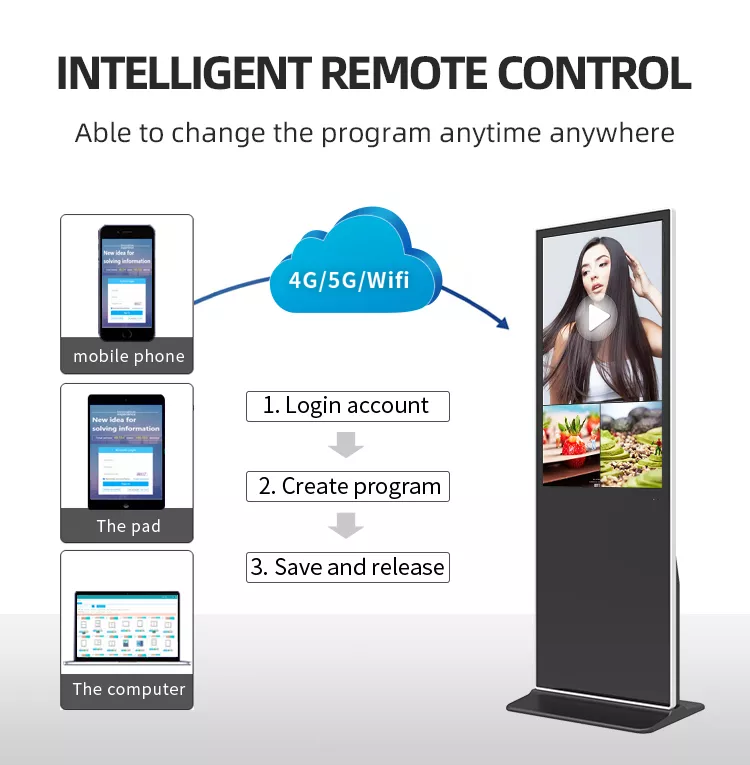

CMS Real Time UpdateBuilt-in digital sigange content management system to support multiple synchronous remote publishing and management.Main features follow:1).Perset time playlist2).Timer on/off3).Split screen4).Rolling words on the screen5).Play advertising content according to time schedule6).Mangee&Group the display
Why choose us:1. >8-years professional manufacturing experience only in digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 2-years warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers. We have two brand brands in China: "FVASEE" and "HSCHN", "FVASEE" is the top 5 brand in China, quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
