Stretched bar lcd

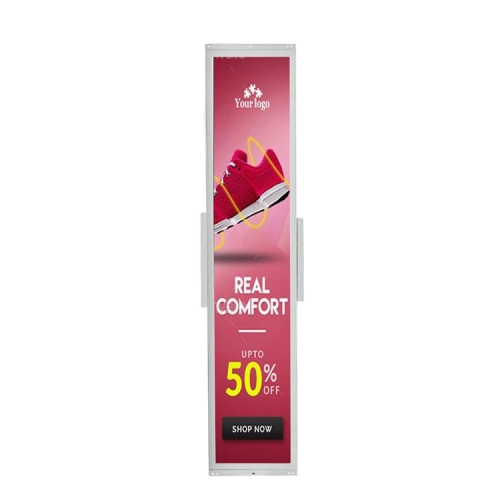

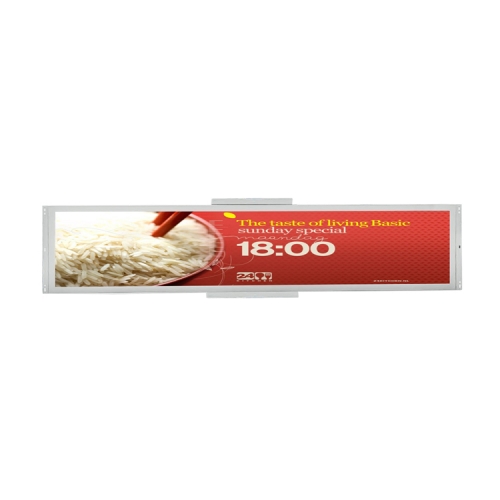

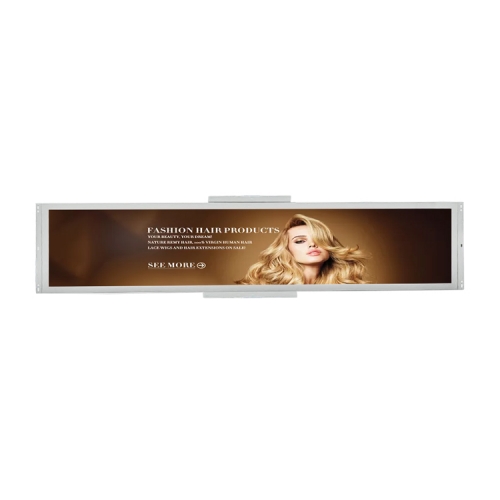

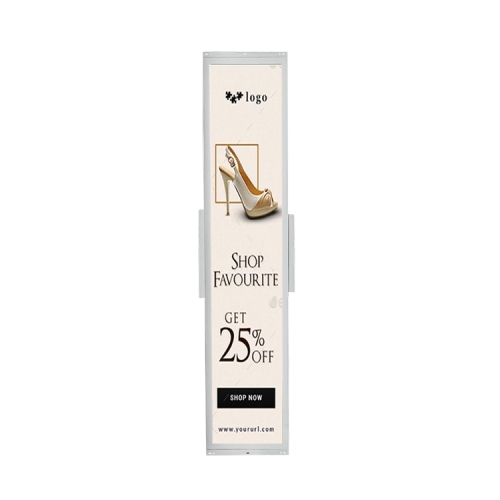

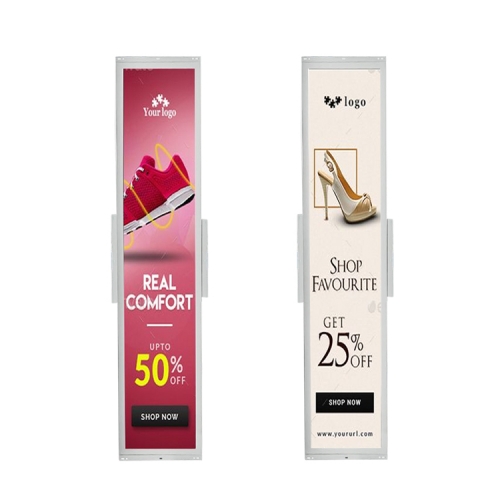

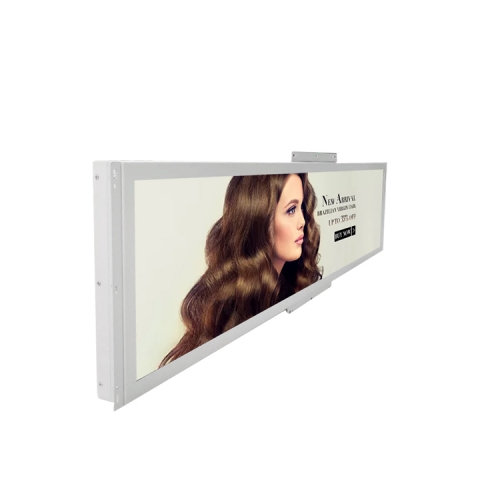

28 inch Wifi Bus Stretched LCD Display Open Frame Train Android Bar Display with back bracket
-
9‘‘ 10‘‘ 19‘‘ 21.3‘‘ 28‘‘ Supermarket edge stretch bar LCD HDMI 4k lcd display monitor
Stretched bar LCD display design for bus/metro,airport and other transportation,Shopping mall and retail shop, replacement of the traditional paper display.● High contrast, high brightness, greatly improving the layering of the picture, and better performance of details;Wide color range.● Sync play or Play as a video wall.● Shelf edge LCD display with narrow bezel, advertisements are displayed without blocking the sight of consumers.● Support WIFI/LAN,3G/4G(optional).Optional Refee CMS software for content remote management
Stretched Bar LCD Display
SIZE28 InchResolution1920*360Aspect Ratio
＞3:1(W:H)Brightness (w/o TP)
500cd/m2Contrast Ratio
1200:1Viewing Angle(H/V)
88/88/88/88(U/D/L/R)Response Time(G to G)
6 (Typ.)ms
Display areamm(V)
698(H)*130.95Unit outline dimensions(mm)
729*161*47.5LCD Life Time
30000hoursUSB Port
2HDMI1VGAN/AEthernet1SD / TF Slot
TF*1Power PortDC2.0CPUA40i, quad -ARM Cortex A7
Memory1GStorage8GConnectionWIFI 802.11b/g/n
Speaker2*3WPower Consumption
≤45WOperation Temp.
0--50°Non-Operation Temp.
-20--60°Relative Humid.
20%~85% RH/n-Condensing
OS & Version
Android 7.1
VESA Mounting
200*60mmAccessoriesfixed board, power adapter（12V/5A）
Net Weight
4.2kgGross Weight
5.1kg
OS:Android version 8.1
HardwareCPUPX30 Quad-core ARM Cortex-A35 1.3GhzRAM:1GBNand Flash:
Standard 8GBWiFi network:
Support WIFI 802.11b/g/n3G/4G network
Support 3G /4G (optional)Managing software:
Use our CMS software installed in server/your computer by which to control and group manage all terminals. Or you may use your own software
Playlist editor:
Multimedia contents can play by playlist mode and loop.
Scheduling playback:
Publish task by calendar, then appointed terminal/terminals would play accordingly
Split Screen display:
Design the layout as you like, supports video, photo, text, ppt, word, excel, flash, rss, wheather, clock, date, web all can be display on different areas
Auto Playback:
Set time power on /off and automatically display and loop, 7 days and 24 hours no manual operation.
video/picture rotation:
90/180/270 degree. (vertical display or horizontal display)

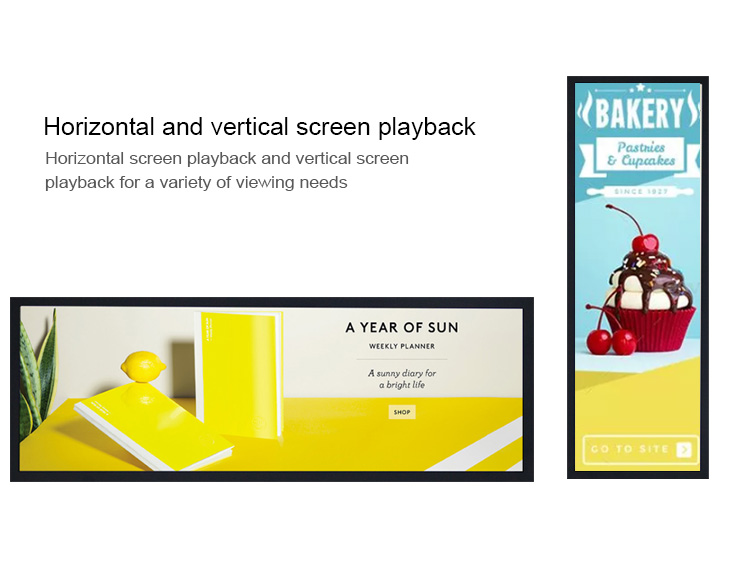

Display type:
Horizontal or vertical/ landscape or portraitTwo speakers:
Built-in stereo speakers (2x5W)Files update:
Files can be transmitted to flash memory automatically from server via LAN,
WIFI or 3G/4G networkTouch screen:
Optional, to make interacive contents.Network options:
Standard with LAN and WiFi (3G/4G is optional)
Accessories:Use Manual,power cord, Remote Control, keys, screws, allen wrench

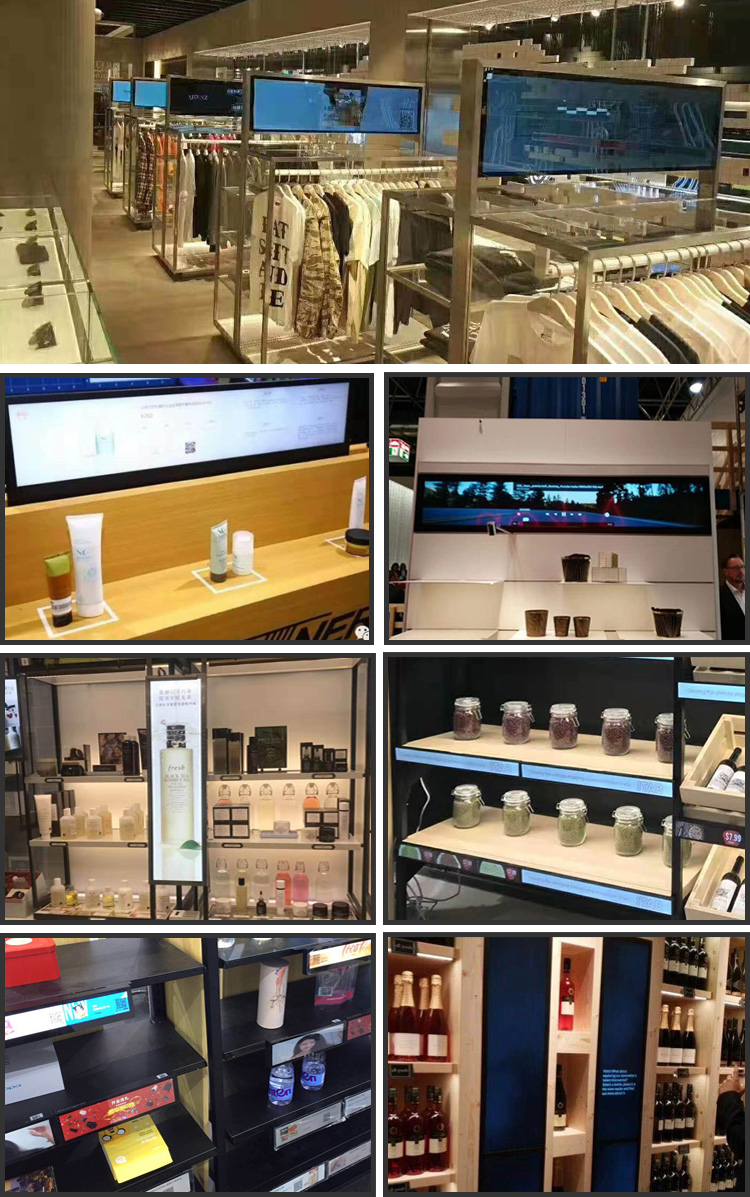

Applications:The retail digital signage shelf lcd display is an attractive Shelf Edge LCD well suited for a variety of in-store, on-shelf digital signage applications such as retail shelf edge pricing, retail shelf edge advertising, and multi-shelf digital signage in supermarkets, grocery stores, liquor stores, clothing stores, and other retail applications. Such a smart shelf system is end to end digital retail TFT shelf edge display solution perfect for retail POS applications, and it can turn your shop into a modern retail business to enhance customers’ shopping experience.Retail Shelf Edge PricingRetail Shelf Edge AdvertisingMulti-Shelf Digital Signage
Why choose us:1. >8-years professional manufacturing experience only in digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 2-years warranty, lifetime maintenance.FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers. We have two brand brands in China: "FVASEE" and "HSCHN", "FVASEE" is the top 5 brand in China, quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
