Digital signage wall mounted

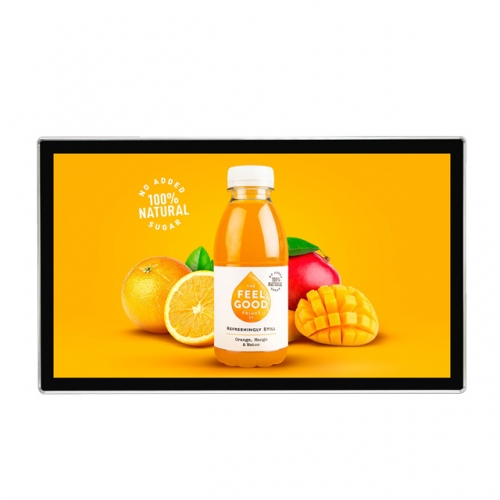

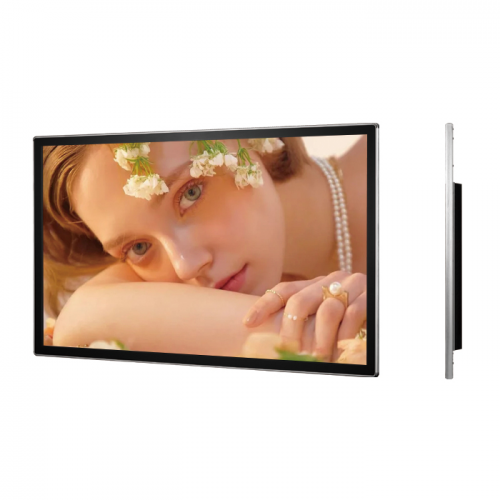

Wall mounted 18.5’’ 21.5’’ 24’’ 27’’ 32’’ 43’’ 55’’ Android 7.1 digital signage wifi LCD advertising display
PROFESSIONAL WALL MOUNTED LCD MONITOR DIGITAL ADVERTISING SCREEN 10.1" TO 65",A cost-effective, high quality professional monitor display screen designed for use 24/7. Perfect for use as wayfinding or digital advertising display with integrated speakers and full high definition 1080p.
This fantastic screen features quality, commercial grade components but retains a cost-effective price point. Available in a selection of sizes, the screens are designed for 24/7 usage and feature full HD displays.

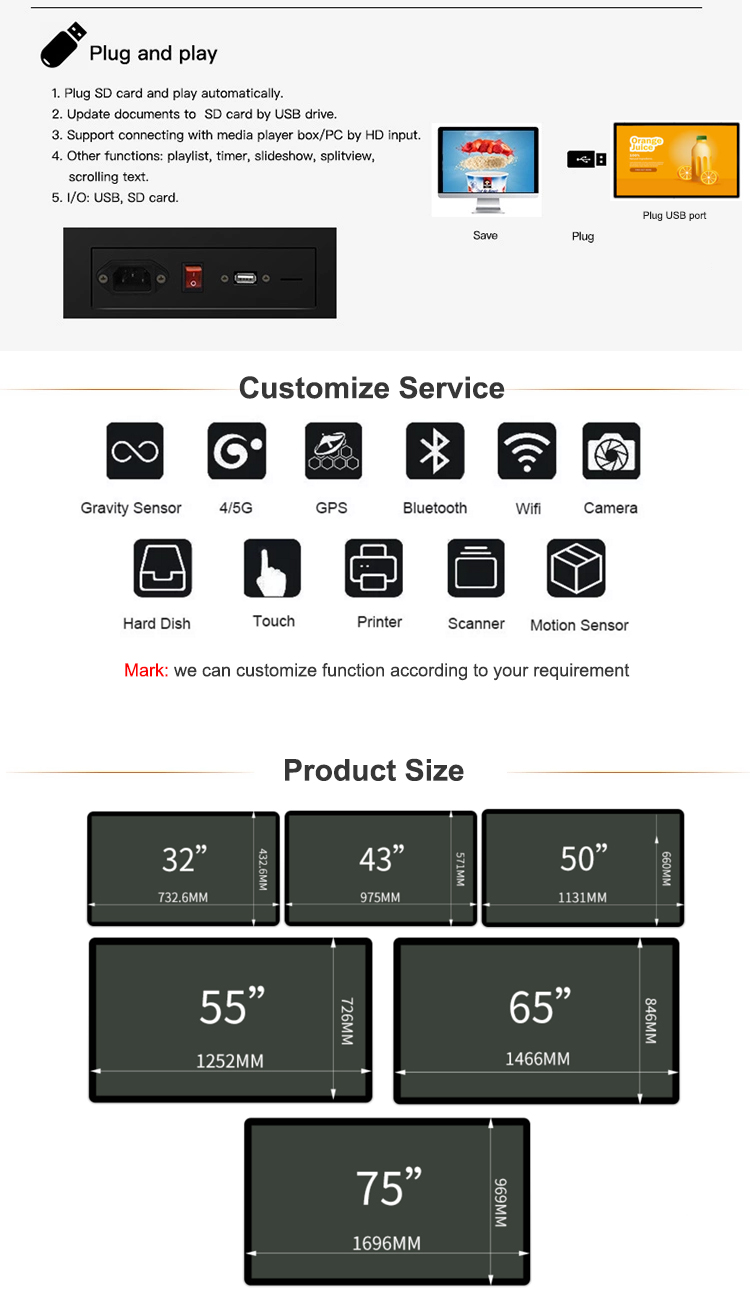

Each digital advertising display has a built in "Plug and Play" system - simply upload your content onto a USB and insert this into the port on the screen. The screens built in media
● Support 7*24 Hours long time playback
● FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal,32", 43", 55" optional
● Metal housing have good heat dissipation effect.
● With wall mounting bracket
-
Wall mounted 18.5’’ 21.5’’ 24’’ 27’’ 32’’ 43’’ 55’’ Android 7.1 digital signage wifi LCD advertising display

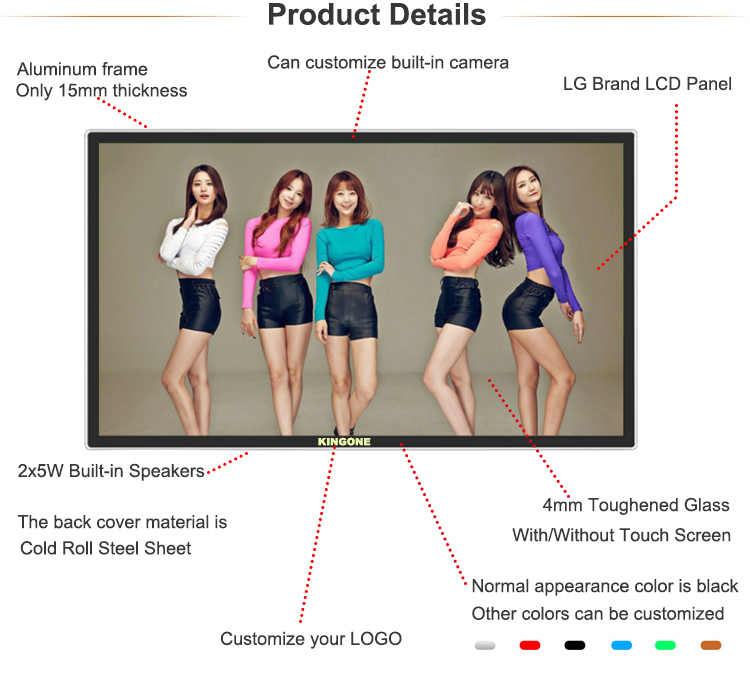

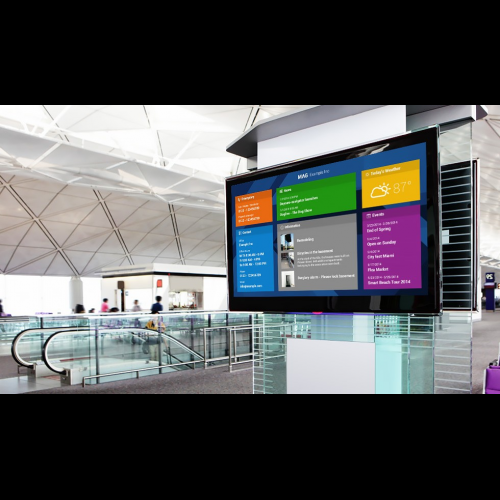

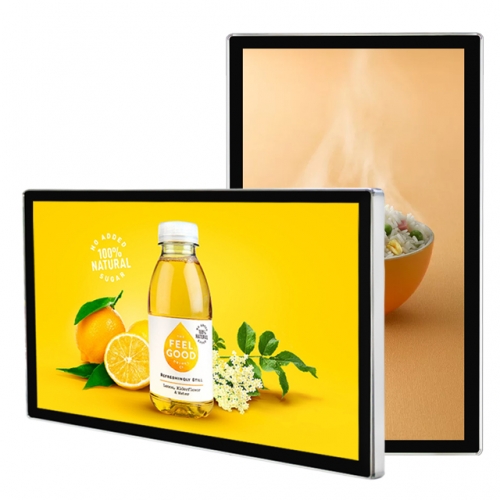

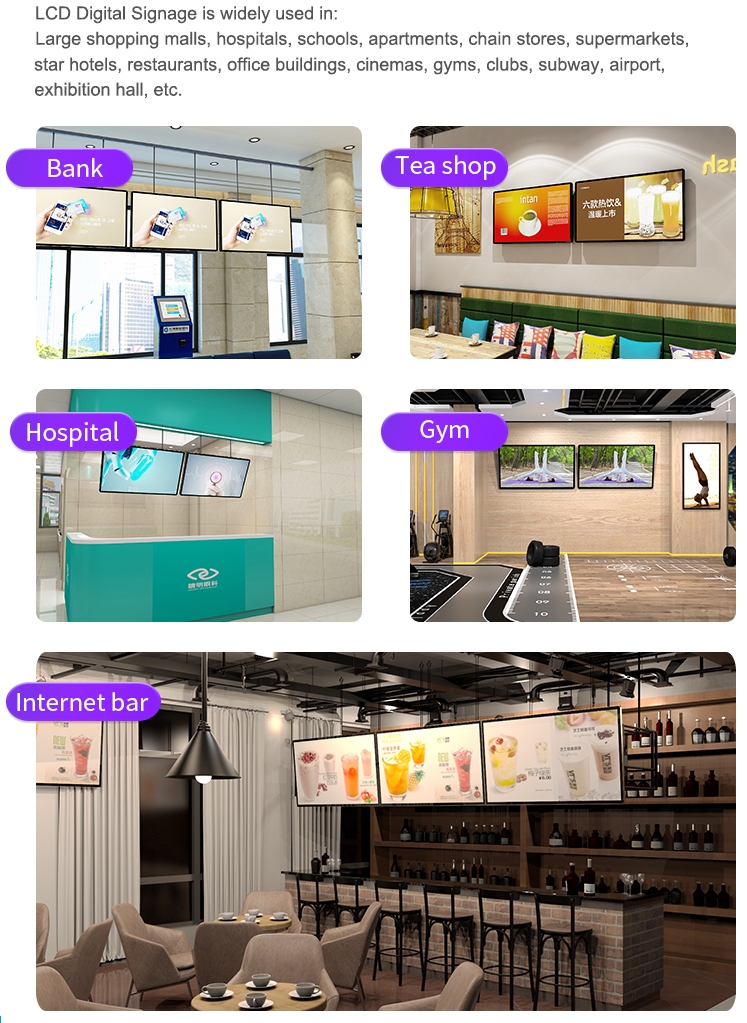

FEATURES:Shenzhen Yameishi Technology Co.,Ltd Wall mounted series is commercial grade LCD screen technology with Android OS or Windows OS. They can be used in a wide public environments,including retail, restaurants (as Digital Menu Boards), hotels,schools, hospitals, corporate.● Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.● Support 7*24 Hours long time playback● FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal ,10.1", 13.3", 15.6", 21.5", 32", 43”, 49”, 55” 65● Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.● With wall mounting bracket, support portrait or landscape installation
Screen Paramenters
Android OSWall mounted digital signage smart LCD advertising screen
Panel Size18.5"21.5"23.8"27"Display size409.8*230.4 mm476*268 mm526*296 mm597.6*336.15 mmProduct size508*305*56 mm515*311*55 mm564*345*55 mm644*382*60 mmPixel Pitch300*300 um248.25*248.25 um274.5*274.5 um311.25*311.25 umBrightness250 Nits250 Nits350 Nits300 NitsPower≤55W≤55W≤57W≤60WPanel Size32"40"43"50"Display size697*392 mm878*485 mm941*529 mm1095*616 mmProduct size750*448*64 mm934*541*79 mm1002*596*81 mm1143*667*82 mmPixel Pitch170.25*510.75 um152.45*449.4 um81.7*245.1 um190.3*570.8 umBrightness450 Nits300 Nits450 Nits350 NitsPower≤55W≤75W≤75W≤108WPanel Size55"58"65"OEMDisplay size1209*680 mm1270*721 mm1428*803 mmProduct size1280*757*86 mm1330*781*90 mm1503*880*101 mmPixel Pitch630*630 um330.75*334 um248*744 umBrightness500 Nits350 Nits400 NitsPower≤108W≤120W≤165W

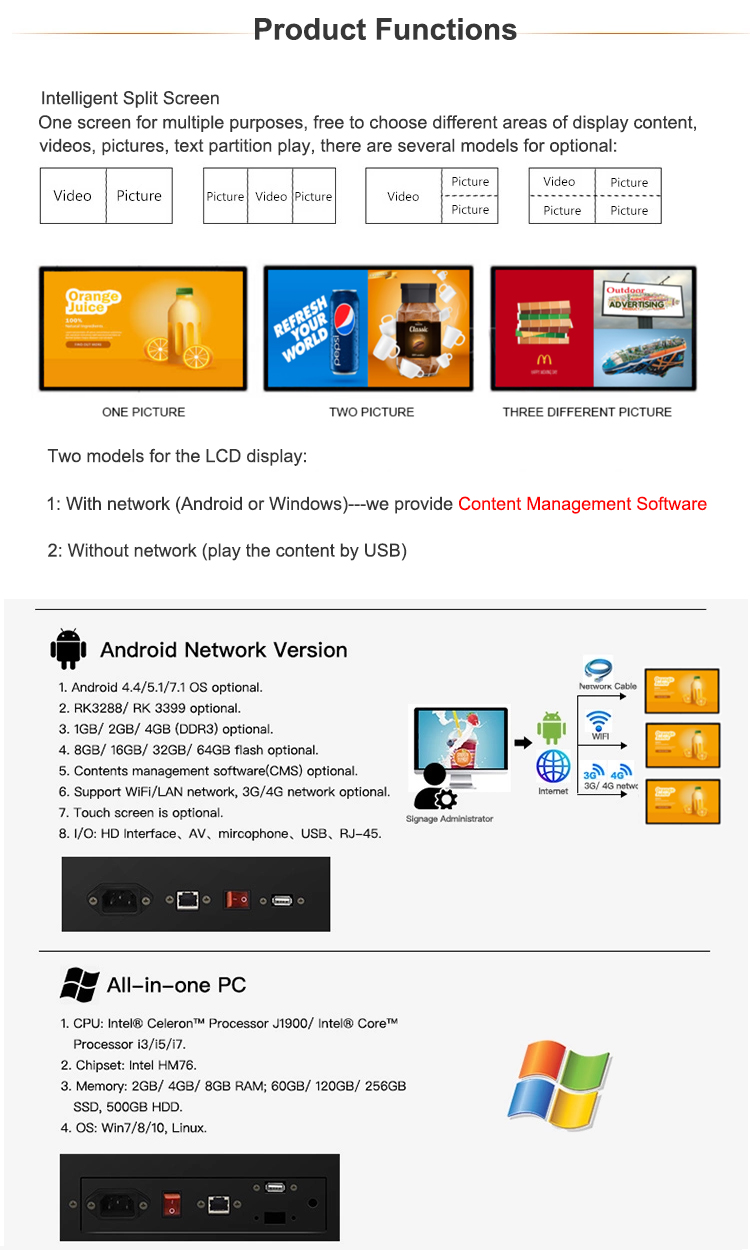

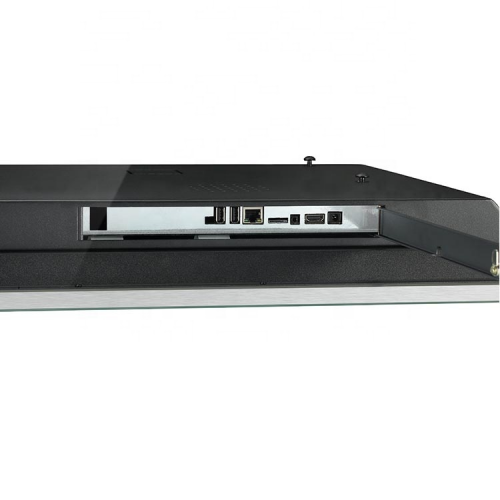

OS FunctionsOS systemAndroid 5.1/6.0/7.1, Windows(i3, i5, i7), USB plug&playMotherboard modelRK3288(RK3399 or A40I(A64) or A40I(A83T) Option)CPUQuad-core Cortex-A17GPUQuad-core GPU Mail-T764RAMDDR 1GB( 2GB /4G Option)FlashEMMC 8G (16G/32G Option)Networking support4G network / LAN / WLAN / Bluethooth4.0Video formatAVI, RMVB, MOV, WMV, MP4, MPEG etc.Picture formatJPG, JPEG, BMP, PNG, GIFAudioMP4, WAV, APE, FLAC, AAC etc.Sofeware FunctionsHorizontal/Vertical/Split ScreenCustomized Play & Power On/OffRTC timing clockSystem watchdogSupport full seamless switchingSupport Web/Local Info.PublishPortsInput PortsHDMI*2, LAN/RJ45*1, USB*2, SD*1 TF*1Output PortsEarphone*1, Speaker 5W*2Power FeaturePower supply100V-240V, 50-60 HzPower Saving≤1WPower consumptionAccessoryAccessoryWarranty Card*1, User manual*1, Remote Control, Power Cord*1, WIFI Antenma*1
Why choose Shenzhen Yaimeishi Technology Co.,Ltd:1. >8-years professional manufacturing experience only in LCD digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 1-year warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers. We have two brand brands in China: "FVASEE" and "HSCHN", "FVASEE" is the top 5 brand in China, quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
