Lcd video wall

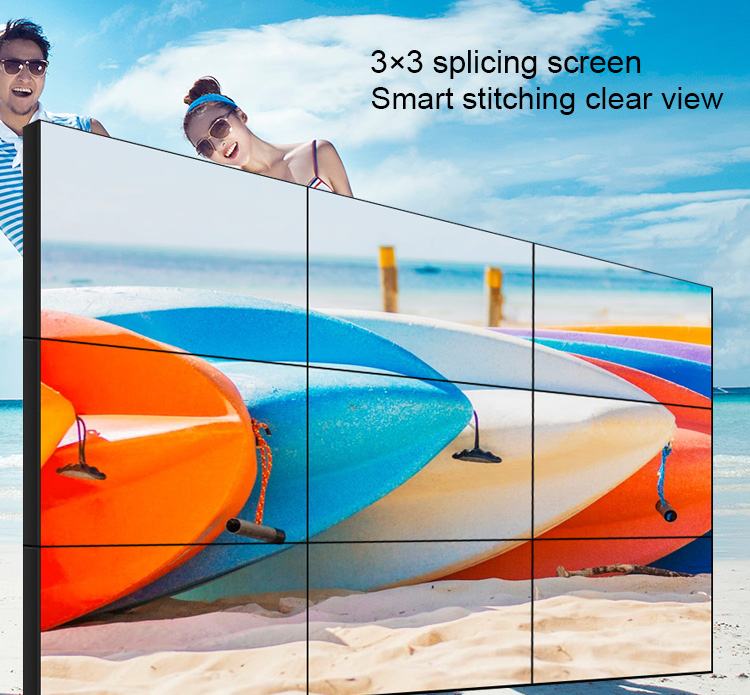

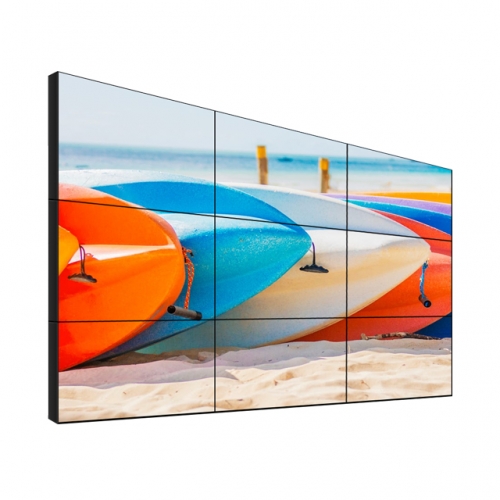

China 49inch 1.8mm super slim wall mounted digital signage lcd video wall full screen display ads
Shenzhen Yameishi Technology Co.,Ltd 49inch LCD video wall：
1.500nit brightness lcd DID LG panel, more than 85%NTSC gamut, clear display of 1.07 billion color details;
2.178° ultra wide viewing Angle, equipped with 4K ultra high definition resolution, showing the vitality of every pixel;
3.The 120Hz screen refresh rate makes the picture more smooth and clear and stable;
4.Explosion-proof tempered glass, Mohs grade 7 hardness, safety assurance;
5.Simple UI design, complex for simple, stable atmosphere, so that the operation into enjoyment;
6.High power shock sound, passion surging, like a rainbow;
7.Automatic color and image enhancement engine, restore true colors, fully display the beauty of color hierarchy;

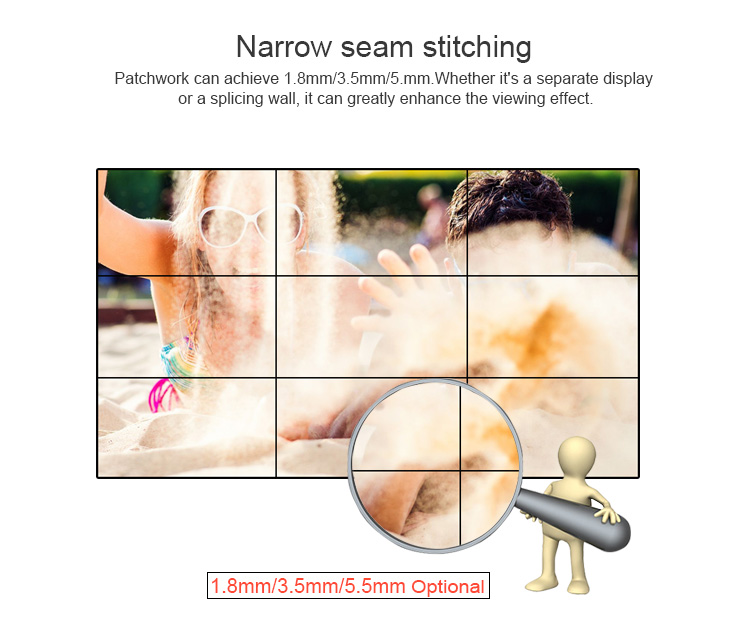

8.Ultra-narrow frame design eliminates visual interference caused by physical frame to the maximum extent, and realizes perfect immersive display on large screen;
-
Factory cheapest seamless 49inch 1x4 indoor full ultra hd lcd advertising screen video display wall for concert
Place of Origin:
CHINAMOQ:1pcsModel Number:
49inch lcd video wallCertification:CE/ROHS/FCC/SGS
Splicing video wall screen Features:

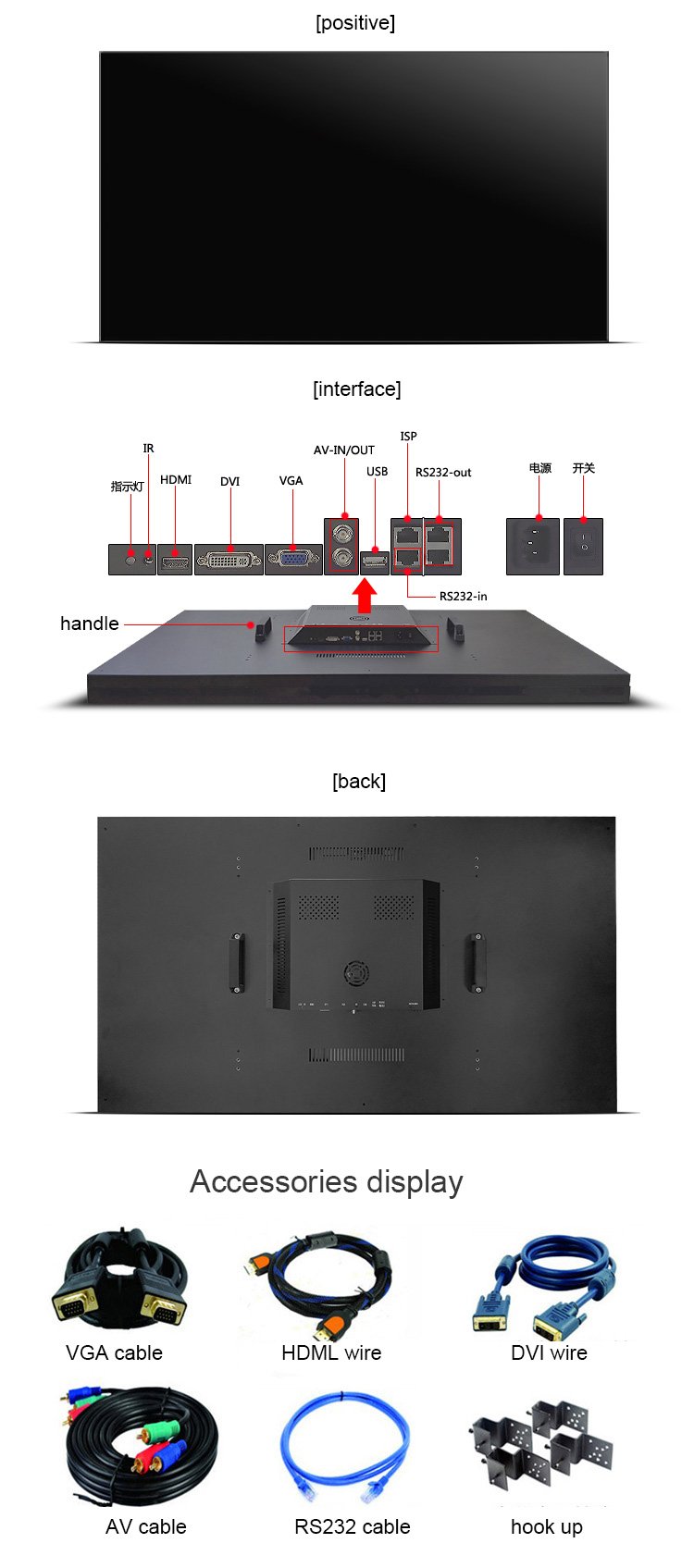

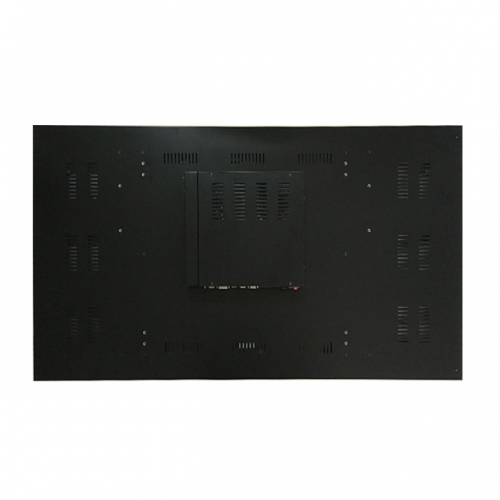

1. The splicing unit adopts a unique OPS modular design, which is convenient for after-sale inspection and maintenance.2. Single screen can support 11920 * 1080 HD picture. Ultra HD resolution,3. Support a variety of signal interfaces to meet user needs for different input signals: DP * 1, HDMI * 1, DVI * 1, VGA * 1, RS232 * 3, USB * 1, AV * 14, 7x24 hours of continuous continuous work, life up to 60,000 hours.5, using professional color calibration technology, through this technology, in addition to color calibration for still pictures, dynamic color calibration can also be performed to ensure the accuracy and stability of the picture output.6. The intelligent temperature control system adopts a dual fan design to ensure that the internal temperature is within 55 degrees, making it safer to use.7, de-interlacing processing technology to eliminate flicker; de-interlacing algorithm to eliminate "aliasing"; dynamic interpolation compensation, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling, etc. International leading technology processing.8. Supports multi-language menu operating systems in Chinese and English, and a human-friendly human-machine interaction interface to meet the needs of different customers.9. Industrial A grade LCD panel, splicing can be combined arbitrarily (MXN), the maximum support for 15X15 unit splicing, input signal line by line, can be accurate to 1 pixel segmentation control.
Product ParameterYMS4601 YMS4901 YMS5501 PANEL Screen Size 46’’ 49’’ 55’’ Panel technology a-Si TFT-LCD/DID/IPS Aspect Ratio 16:9 Native resolution 1920X1080(FHD) Brightness 500 cd 500 cd 500 cd Contrast Ratio 3000:1 Visual Angle (HxV) 89/89/89/89(Typ.)(CR≥10) Response Time 8 (Typ.)(G to G) ms Surface Treatment Hard coating(3H),Anti glare treatment of the front polarizer(Haze 25%) Orientation Portrait & Landscape CONNECTIVITY Input HDMI,DVI,VGA,AV,CVBS Output LVDS,Backlight External Control RS232,RJ45,IR Receiver PHYSICAL SPECIFICATION Bezel Width 1.7/1.8/1.7/1.8mm (Top/Bottom/Left/Right) /3.5mm B to B:Panel Bezel+Panel Bezel) 1.7/1.8/1.7/1.8mm (Top/Bottom/Left/Right) /3.5mm B to B:Panel Bezel+Panel Bezel) 1.7/1.8/1.7/1.8mm (Top/Bottom/Left/Right) /3.5mm B to B:Panel Bezel+Panel Bezel) Monitor Dimension(WxHxD) 1021.98x576x57x127.8mm 1078.34x608.36x145.27mm 1213.4x684.2x125.7mm Weight 21kg 25kg 29kg Package Dimension(WxHxD) 1250x900x300mm(2pcs) 1270x900x300mm(2pcs) 1360x960x365mm(2pcs) SPECIAL FEATURES Timer on/off function, RJ45 Control, Intelligent Fans (temperature sensor), CE&ROHS, 7x24 running ENVIRONMENTAL CONDITIONS Operating Temperature Range 0 ~ 50 °C Storage Temperature Range -20 ~ 65 °C POWER Power Supply 110-240V,50/60Hz Power Type Built In Power POWER CONSUMPTION Type 200 W 200 W 220 W Max 280 W STANDARD (CERTIFICATION) CE&ROHS&EMC&SASO MEDIA PLAYER COMPATIBILITY Pure Hardware structure,No CPU,No OS SOFTWARE Self developed software(can provide protocol to allow third party development) ACCESSORIES Basic Remote control,Power cable,HDMI Cable,software copy,IR Receiver,RS232 cable,RJ45 cables,wall mount hooks,screws Optional Wall mount aluminum rack(40x40),Floor standing rack,Front access Mount. Applications:Business Organizationssupermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

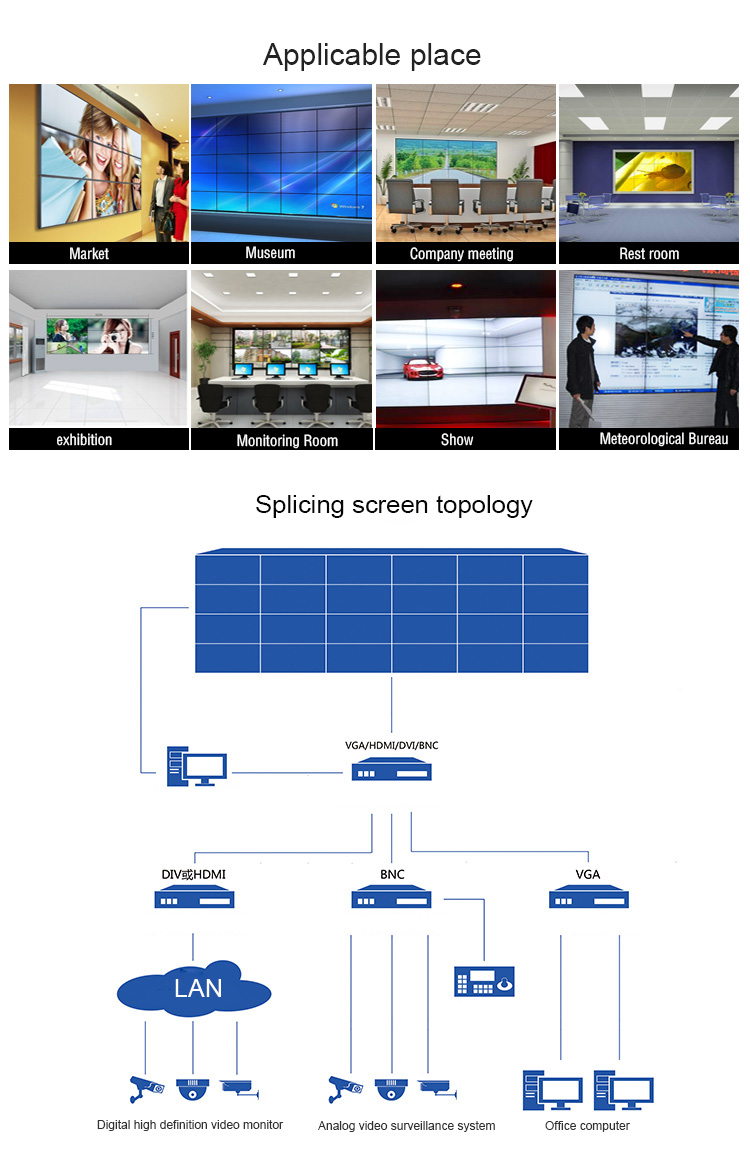

Financial OrganizationsBanks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
EntertainmentsMovie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Why choose Shenzhen Yaimeishi Technology Co.,Ltd:1. >8-years professional manufacturing experience only in LCD digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 1-year warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers.quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
Shenzhen Yameishi Technology Co., Ltdwas founded in 2015 which is an engineering and manufacturing company focus on various advertising equipment. Including: media player, Outdoor waterproof digital signage, LCD displays advertising screen, monitors, Wireless network Ad player, Bus media player, Ad player media box, DID Video Wall etc.
Our workshop covers an area of 5000 square meters equipped with 5 modern professional production lines , over 20 senior engineers and assembly assistant and 2 professional after-sales engineers , all the staff must be trained in pre-service, the current daily output can reach to 500 units.
