Outdoor lcd screen
China Factory 43inch air-cooled outdoor advertising machine from Shenzhen yameishi technology co.,Ltd
-
IP65/IP66/IP67 Waterproof high brightnss Outdoor floor standing LCD kiosk Android advertising screen
Product features:Appearance fashion: according to customer demand, the exterior of the professional design elegant fashion styles;Outdoor highlight: bright and visible in the sun, the highest brightness of 3,000 nit;Intelligent light-sensing: automatically adjust the screen brightness varies with brightness, energy saving and display effect and comfortable;Regular backlight: it supports the regulation of regular backlight in 10 groups of time, which is convenient and easy to operate.Intelligent temperature control: intelligent temperature control system, maintain its interior temperature dry environment, prevent fog, condensate phenomenon;Dust and waterproof: the whole machine is of closed design to prevent the external dust and water from entering the inside, reaching the IP55 standard;Sunscreen explosion proof: shell for galvanized steel or stainless steel, the lacquer that bake, waterproof sunscreen, explosion-proof professional surface treatment technologies;Anti-glare and anti-reflection: imported anti-glare glass is adopted on the front of the product, which can effectively increase the internal light projection and reduce the reflection of external light, so as to make the LCD display image color, more bright and bright.High reliability: through reliable hard drive self-examination and repair mechanism, the player supports 10,000 more times of forced blackouts and switch machines without damaging files and reliable broadcasting;Free easy to use: the player does not need special network site personnel for maintenance, and the player can start automatic operation, automatic shutdown, self-management and easy to use.

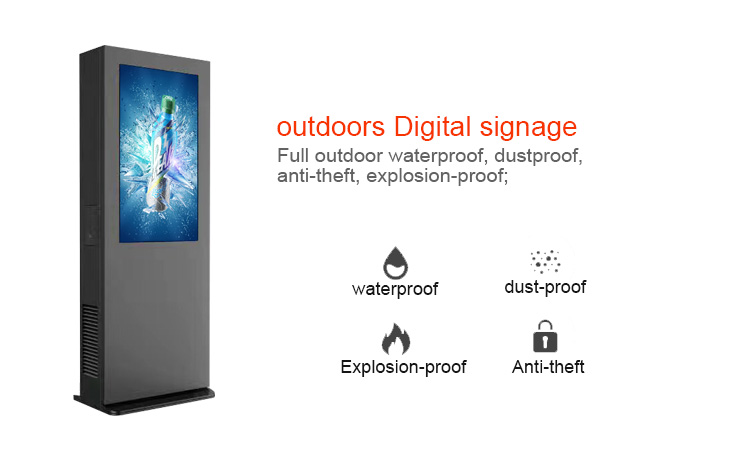

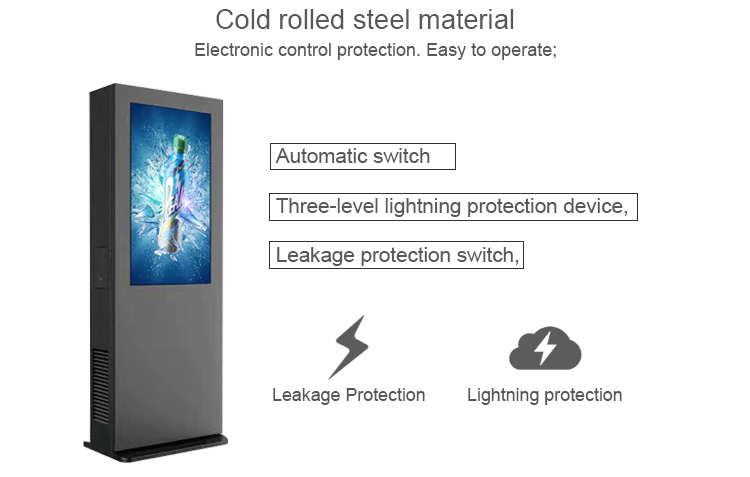

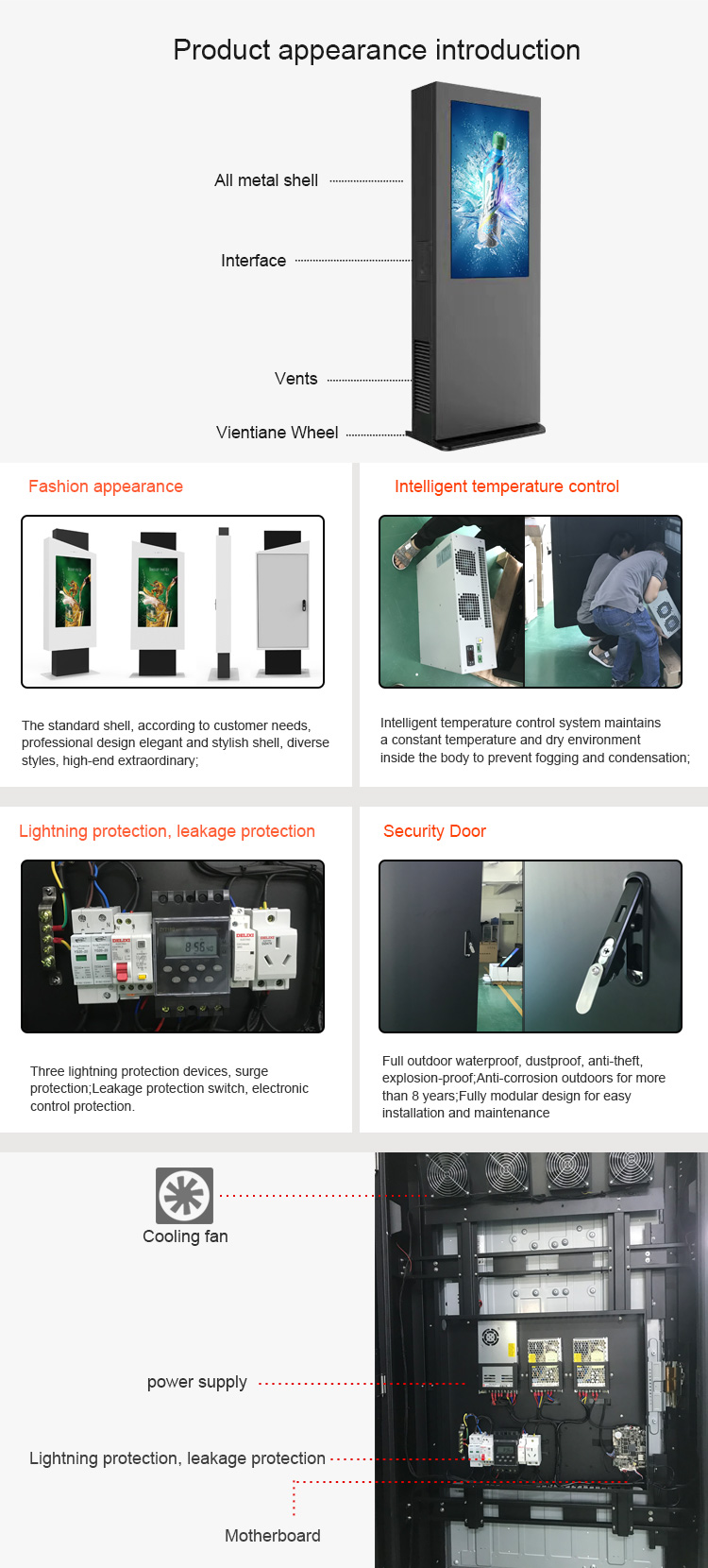

Structural performance:1. The shell is made of full galvanized steel plate making cabinet, and the outer surface is imported with metallic paint, anti-magnetic, anti-static, imported waterproof material, the whole machine adopts IP55 waterproof, outdoor weather protection and dustproof, anti-theft, anti-explosion, etc.;2. Strictly electric protection: the leakage, overload, over-voltage protection, lightning protection, over temperature protection, etc.;3 sound: double sound, stereo surround, output 8 o 2 times 10W;4. Working environment design standard + 55 ° to 30 °, stable and reliable cooling USES air-cooled heat dissipation and aluminum military level heat dissipation substrate;5. Toughened glass: the 6 mm AR tempered laminated glass;6. The system of the whole machine adopts the principle of modularization design, which can be designed continuously and maintainability;7. The machine fixed way: using from the ground and the screw column, interspersed with add nut is fixed to the bottom of the machine;8. Superior light sensing system: the ambient light brightness is automatically adjusted and controlled to prevent glare, so as to meet the clear image display in the strong direct sunlight environment;Product advantages:1. Highlight the LED backlight liquid crystal screen, and the lumen can reach 1500/2000/3000nits.2. Unique LCD substrate wide temperature treatment can reach - 30 ℃ to 60 degrees Celsius, quick start in low temperature environment and clear image display;3. The United States imported high anti ultraviolet infrared heat insulation heat transmission AR glass, thickness of 6 -- 10 mm;4. Unique military heat radiation technology, built-in high-efficiency heat sink and high quality fan set, multi-channel radiator and filter dust prevention system;5. Intelligent photosensitive, automatically adjust the screen brightness according to the surrounding environment, to reach the best visual effect, saving energy and reducing aging degree;6. True bright color display up to 1920 x 1080;7. Outdoor rain-proof heat-resistant metal shell, and waterproof and dustproof shell structure in outdoor storm environment;8. Built-in single machine (network) playback board, industrial control computer (optional), interactive multi-touch (optional);Features of network edition:1. The main chip adopts the United States Sigma design series products, 1920x1080 hd video to decode the best picture quality and support the high definition video packaging format;2. Adopt 500+333M main frequency MIPS+FPU and hard decoding, perfectly support 1920x1080P hd video files, and support multiple split screen playback, RSS, PDF, slide files and TXT flowing subtitles, so as to show you the charm of multimedia digital signage.3. Low cost operation maintenance and efficient program release and update: this product supports local area network, WIFI and 3G flexible network operation, and can control each digital label of the netting network at any place anywhere in the world.4. Support the high capacity SATA hard disk, the SD card storage medium and usb 2.0 interface, so that the machine can update the program with high efficiency through the U disk without any network;
Stand-alone function parameters
Network version function parameters
Main chip
MSTAR seriesMain chip
Sigma DesignsInterface1xUSB2.0,1xCF，1xSDInterface1xUSB2.0,1xSATA，1xSD，CVBS(optional)Storage media
U disk,,CF card，SD card
Storage media
Class 6/10 SD card SATA DOMand hard disk
Video format
MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVBVideo format
MPG,MPG-1,MPG-2,MPG-4,AVI,MP4, TS,MKV,WMVand other mainstream formats
Maximum decoding resolution
1920*1080Maximum decoding resolution
1920*1080Image format
JPEG,PNG,BMPImage format
GIF,JPEG,PNG,BMPAudio output
2x15WAudio output
2x15WMaximum frame speed
30frm/sAudio format
MP3,24bit linear PCM7.1
Audio sampling rate
32KHZ,44.1KHZ,48KHZ,96KHZManage software
C/S architecture operating environment: Windows 2003/xp/win7
Bit rate
32kbps-384kbpsOther formats
PDF/RSS news/weather forecast /PPT
Maximum color depth
24bitNetwork mode
RJ45 interface, wifi (optional), 3G (optional)
Maximum code flow
USB2.0 device：30MB/S
Program update way

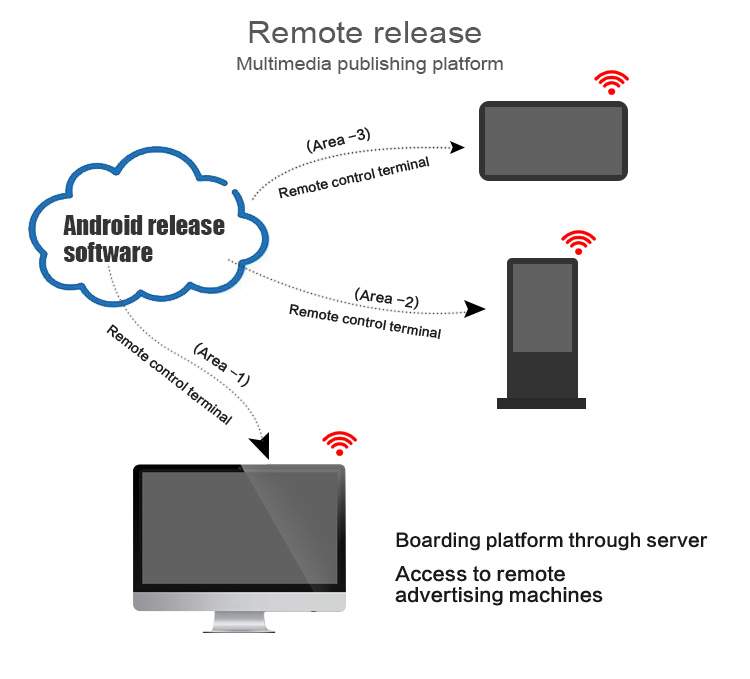

network remote update, usb update
Product features
upport menu rotation, OSD multilingual, automatically boot looping, breakpoint memory, spots, time switch machine, the minute volume, sticker, water subtitles, USB playback program update program, automatically generate log, support + music video, pictures, images, mixed mode.
Display mode

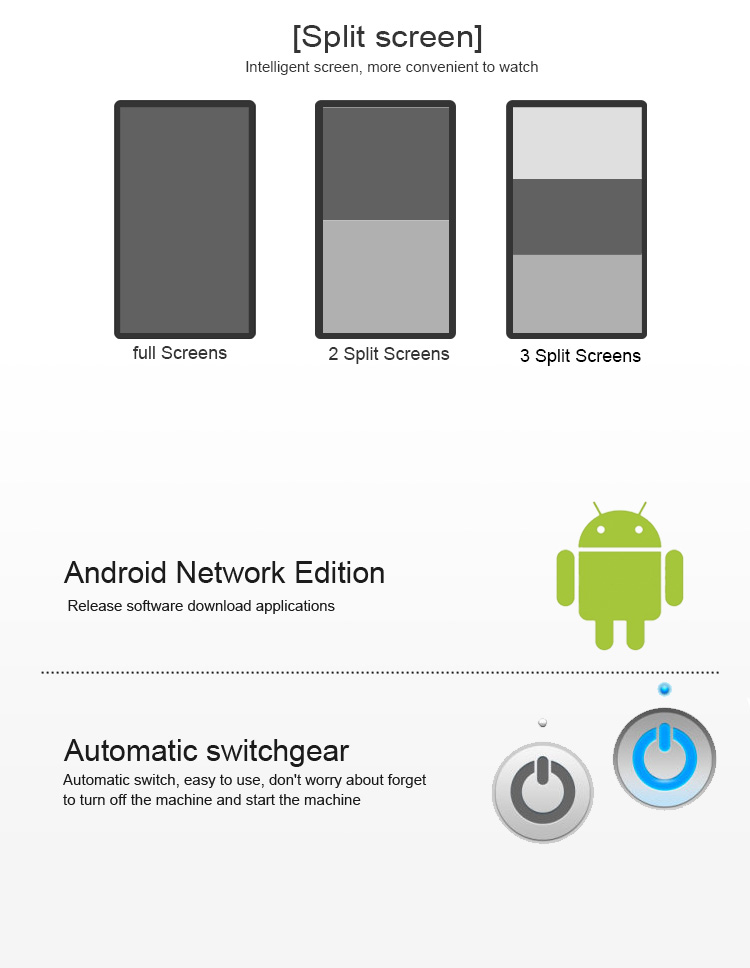

horizontal/vertical screen, full screen/any split screen
Program download
USES FTP protocol to download regularly, automatic download
Program upgrade
remote upgrade, remote control upgrade
The timer switch
supports any time period
Other features
time-sharing volume, background music, scrolling marquee, sticker, background images, remote switch machine, streaming media, call waiting time broadcast, multiple program style looping, timing, broadcast television.
Panel parameters
Panel type
43”LED Panel
Display sizeDisplay ratio
16:9Backlight type

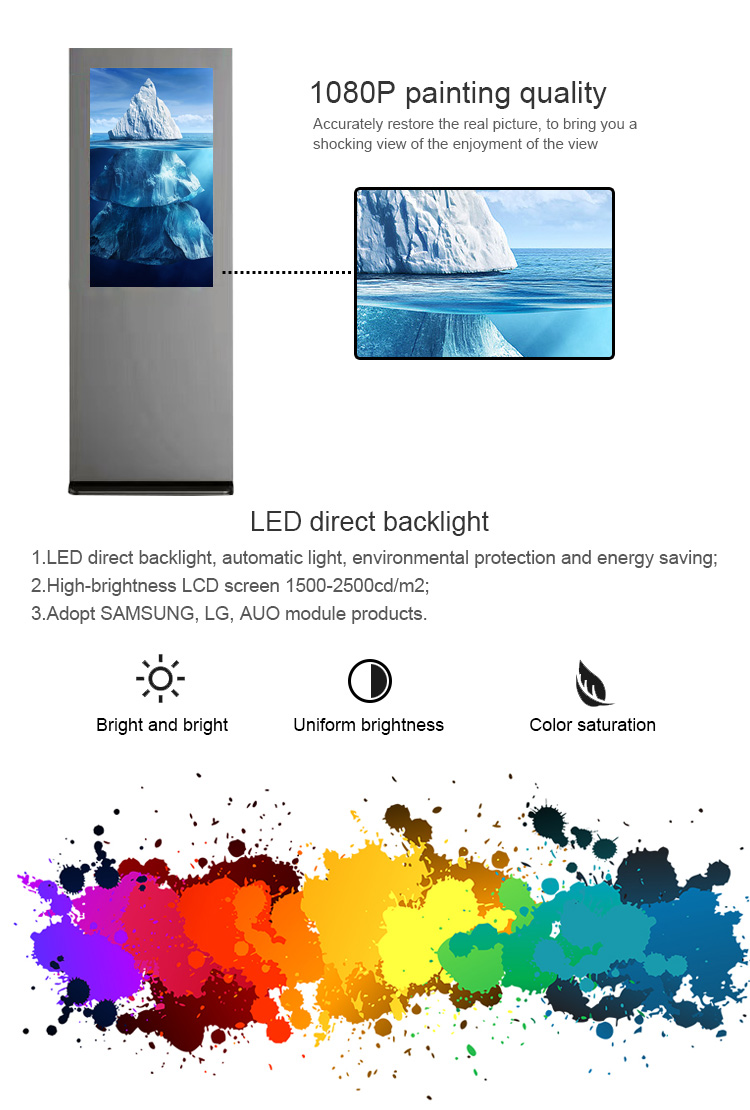

patented LED backlight modular components + constant current source drive components
Resolution1080*1920Display color
16.7Mbrightness2000cd/m2 meets a clear image of the sun in direct sunlight
Contrast,3500:1Viewing Angle
178°(H) / 178°(V)
Response time
5msColor standard
PAL/NTSC/SECAMService life60000hoursThe cooling parameters
Intelligent fan cooling
utomatically adjusts air volume according to temperature (EBM centrifugal fan cooling)
Maximum input power W
AC 100WWorking environment temperature range

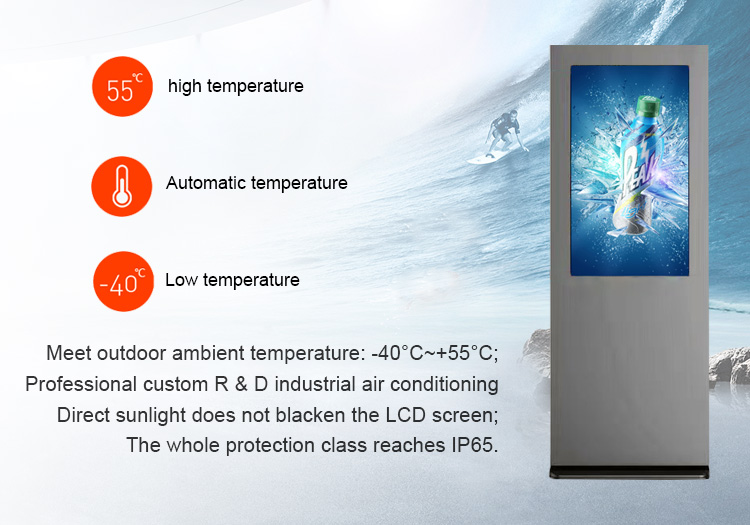

-35℃--------+55℃Noise Db(A)<55dBProtection level
IP65Service life50000HMTBF(average trouble-free time)
40000HWorking environment
Working temperature
-35℃～55℃The storage temperature
-35℃～60℃Working humidity
10%～90%Storage humidity
10%～90%otherCooling mode
patented heat dissipation structure combination + aluminum military-grade heat dissipation substrate
Protective glass
6mm AR clamp glassProduct sizeXXmm*XXmm*XXmmAppearance colour
silver, grey and white
Shell material of galvanized
steel plate + outdoor special paint
Product certification
ISO9001,3C,FCC,ULNet weight92KgPower inputAC100V～240VPower consumption
≤380WStandby power consumption
≤3W
Why choose Shenzhen Yaimeishi Technology Co.,Ltd:1. >8-years professional manufacturing experience only in LCD digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 1-year warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers. We have two brand brands in China: "FVASEE" and "HSCHN", "FVASEE" is the top 5 brand in China, quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
Shenzhen Yameishi Technology Co., Ltdwas founded in 2015 which is an engineering and manufacturing company focus on various advertising equipment. Including: media player, Outdoor waterproof digital signage, LCD displays advertising screen, monitors, Wireless network Ad player, Bus media player, Ad player media box, DID Video Wall etc.
Our workshop covers an area of 5000 square meters equipped with 5 modern professional production lines , over 20 senior engineers and assembly assistant and 2 professional after-sales engineers , all the staff must be trained in pre-service, the current daily output can reach to 500 units.
