Touch Screen LCD Whiteboard

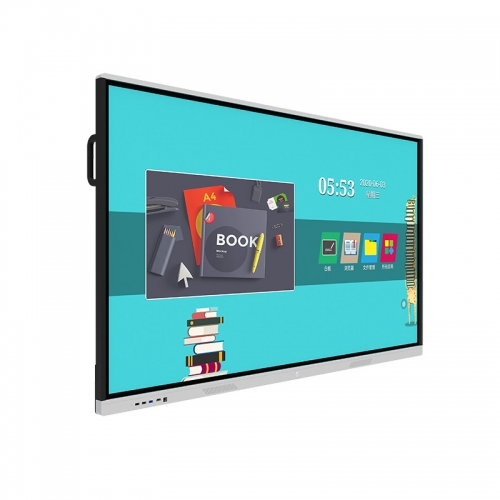

55‘‘ smart interactive finger multi touch whiteboard for class All in One PC Shenzhen Yameishi Technology Co.,ltd

1. Narrow edge sandblasting oxidation front frame, ultra narrow design, providing perfect visual effect;
2) Aluminum alloy outer frame, surface sandblasting and oxidation treatment, iron shell back cover, active heat dissipation;
3) High speed 10 ~ 30 point infrared touch, faster writing speed and best writing experience;
4) The front remote control window is convenient for users to operate with the remote control, set and debug the product;
5) Front speaker sound output to prevent deterioration of sound effect due to embedded side / rear sound output environment;
6) 4mm physical toughened anti riot high permeability glass to enhance visual effect and improve touch experience;
7) Use the international standard OPS slot, integrated design, convenient upgrade and maintenance, beautiful fuselage;
8) The Android motherboard and PC in the machine are respectively equipped with WiFi modules, which is convenient for users to carry out wireless transmission and network operation through WiFi;
9) It supports touch menu and any channel writing, annotation and screenshot functions; Child lock function, which can shield key functions through setting;
10) The front 7-Key function buttons on the front are: power button, menu, volume +, volume -, V +, V -, signal source, which is convenient
  • 55‘‘ 4k Intelligent Interactive Conference Tablet integrates computer,Intelligent Interactive Conference Tablet integrates computer, projector, electronic whiteboard, audio, camera (optional), HD TV, Digital signage and other equipment functions into one.
    With writing, annotation, multi-screen interaction, remote video (optional) and other functions, integration of 4K high-definition display, infrared touch control, human-computer interaction, multimedia information processing and network transmission and other technologies.
    Intelligent interactive conference tablet is mainly suitable for various types of offices, conference rooms, multimedia classrooms, exhibition halls, exhibition halls, medical consultation, training and counseling, activity education center and remote video conference.
    • Collaborative office, zero distance communication: support software and hardware video conferencing, remote collaboration zero distance; Large scene multi-screen interaction, touch writing large-screen synchronous display;
    • Wireless screen projection, display no "wire" system: Notebook/desktop/mobile phone/Pad wireless screen projection, wiring troubles are no longer; Support two screen/four screen, scheme comparison is more intuitive
    • Free annotation, writing without boundaries: annotation on any interface at will, one key record of various inspirations; The whiteboard supports 20 people to write at the same time, and the intersection of thinking blooms infinite wonderful;
    • Meeting content, one-click sharing: the written content can be shared by scanning code and email, and the energy can be focused on the meeting content to improve efficiency;
    • High speed writing, "front" exposed: 1mm touch accuracy, writing natural and smooth; Intelligent pen edge optimization, from the turn between let the handwriting back to nature;
    • Built-in 800W camera, 6 array microphones, make the picture clearer, "sound" in its environment.
    • 4K display: 4K resolution, picture details can be seen; Anti-glare anti-fingerprint, not afraid of strong light;

    Screen features:
    LED
    Operating temperature:
    0~40°
    storage temperature:
    -20~60°
    Storage humidity:
    5%~85%
    Working humidity:
    20%~80%
    Working time
    >30000 H
    Color
    Standard:silver/black (other colors need to be customized)
    brand:
    CMO/BOE/AUO/LG
    Size
    55inch
    Brightness
    400 cd/m²
    Contrast
    5000:1
    Resolution
    3840*2160  /  1920*1080
    Response time
    8Ms
    ratio:
    16:9
    Display angle:
    178°/178°
    Display area
    1209.6(H)× 680.4 (V)MM
    Android information:
    motherboard solution
    638(Dual OS)/658(Dual OS)/V53(Single OS)/3458(Single OS)
    Meeting motherboard solution
    648(Dual OS)/828(Dual OS)/848(Dual OS)/ 811(Dual OS
    Education motherboard solution
    638(Standard:1+4G)   658:(Standard:1+8G)
    Conference motherboard configuration
    648:(Standard:1.5+8G  option:2+32G)   828:Standard:2+4G  option:2+32G)
    848:(Standard:2+8G   option:3+32G)   811:(Standard:4+32G)
    Android version:
    638:5.1   /   648:6.0   /   658:6.0   /   828:5.0    /    848:8.0     /    811:8.0
    Play multimedia images
    JPEG/GIF/PNG/BMP
    Play multimedia videos
    H.264,H.265,TS,AVS,MPEG-2-4
    Play multimedia audio
    MP3,WMA,WAV,APE,FLAC,AAC,OGG,M4A,3GPP
    WI-FI:
    WLAN802.11 a/b/g/n/ac  2.4G/5G
    Ethernet
    10/100M/1000 Base-T RJ45 Ethernet interface
    trumpet
    8Ω 10W*2
    Product information:
    computer setup:
    Extra offer OPS by cost or use buyer own ops
    Standby power:
    0.5W
    Total power:
    250W
    Power:
    AC100V~240V  50/60HZ
    Installation mode:

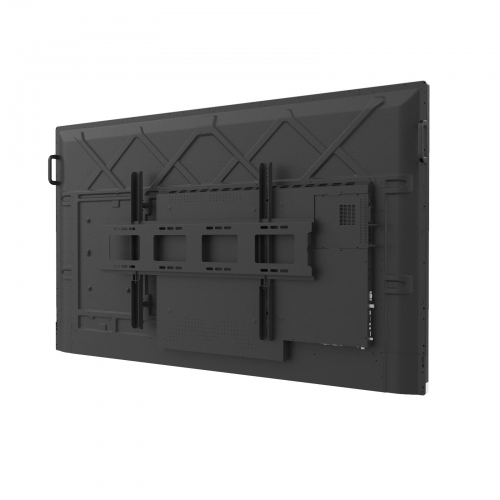

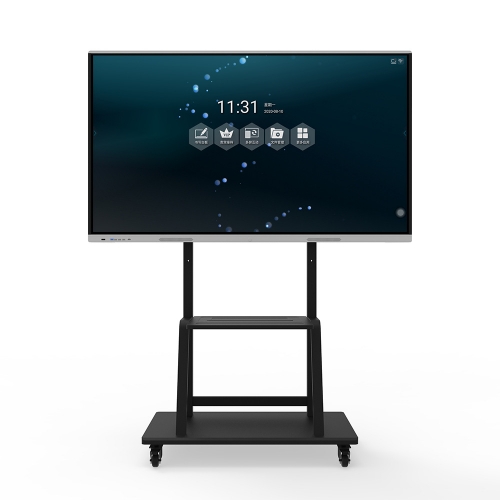

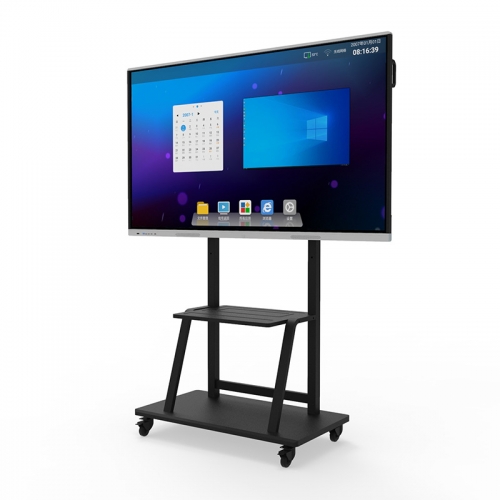

    Wall-mounted/mobile wall-mounted (optional)

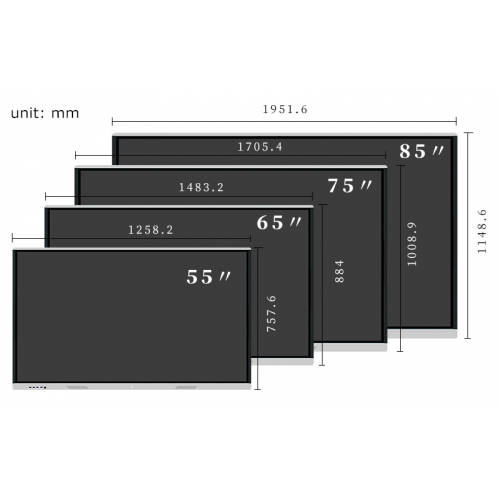

    Product Size
    1264.9*779*91.8MM
    Package dimensions:
    1345*869*138MM
    Net weight
    24.4KG
    Gross weight
    34.6KG
    Android OS hardware ==848 2G16G
    Chips
    MSD648(648 mainboard)
    CPU
    ARM A53 four core
    RAM
    2GB
    ROM
    16GB
    OS
    Android  6.0
    TV function
    Cable TV watching and playing function
    USB multimedia file playback function
    Touch function
    Support 20-point computer touch operation
    Support image zoom in, zoom out, and rotate
    Support the touch function after each signal source is switched
    Support the touch control of the signal source, volume and other menu controls in the display state of each signal source
    Other function
    Sleep timing, shutdown memory
    Support remote control instead of keyboard, realize F1~F12 button function, remote control TV power on function Support touch menu, realize return key, menu operation, task preview, channel switching, volume adjustment, shortcut whiteboard operation and other functions
    Support clicking any signal source on the main page of the system
    Support remote child lock function
    Support wireless wifi, wired LAN
    Support front button one-key switch computer, TV, one-key computer reset and home button function
    Support embedded high-definition camera to take pictures and video functions (optional support required)
    Front HDMI, USB2.0, USB3.0, Touch interface, easy for users to use
    Mainboard input/output interface
    USB input
    4 road(Type-A shape USB2.0 x3 road[USB2.0 x1 road,USB3.0 x1 road]
    TOUCH  input
    2 road(Type-B shape For HDMI Touch )[with pre 1 road]
    Audio input
    1 roadPC-VGA audio
    Expansion storage
    1 road(SD card standard socket)
    TV input
    1 road(75Ω  IEC standard F shape)
    Network input
    v 1 road  standard RJ45 Wired Ethernet port
    v 1 road  wireless 2.4G Wi-Fi
    Video input
    v 1 road VGA
    v 2 road HDMI
    v 1 group  AV IN(Mini 3in1)
