Lcd video wall

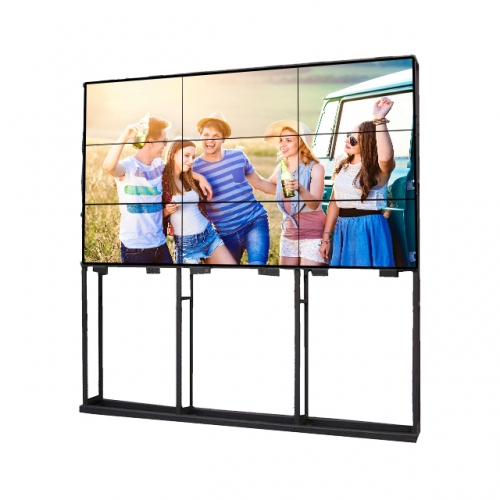

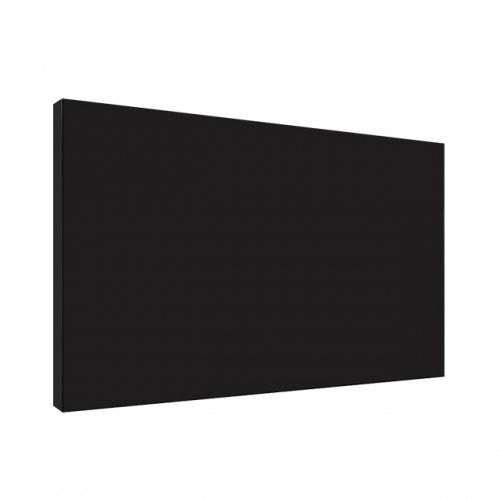

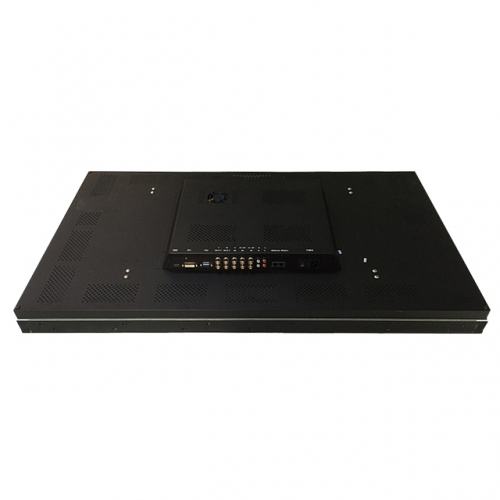

65-inch digital signage and displays LCD splicing screen 3.5mm patchwork 500 brightness
Shenzhen Yameishi Technology Co.,Ltd LCD DID panel factory
The unique DID (Digital Information Display) panel technology has become the focus of attention in the display industry. The revolutionary breakthrough of DID panel lies in ultra-high brightness, ultra-high contrast, ultra-durability and ultra-narrow-edge applications, which solves the technical obstacles of liquid crystal display in public display and digital advertising signs. Generally speaking, the brightness of LCD screens used in televisions or computers is only 250 ~ 300cd / m2, and the brightness of LCD screens with DID panels is as high as 500cd / m2 and the contrast ratio is as high as 10000: 1, which is twice as high as that of traditional computer or TV LCD , Three times the average rear projection. Therefore, professional LCD monitors with DID panels are clearly visible even under strong outdoor light.
-
65-inch digital signage and displays LCD splicing screen 3.5mm patchwork 500 brightness
1.High brightnessCompared with TV and PC LCD screens, LCD splicing screens have higher brightness. The brightness of TV or PC LCD screen is generally only 250 ~ 300cd / ㎡, while the brightness of LCD LCD splicing screen can reach 700 cd / ㎡ (46 ″). 3. High-contrast DID LCD screen has a contrast ratio of 3000: 1 (46 ″), It is more than double than the traditional PC or TV LCD screen, and three times that of general rear projection.
2. Image processing technologyThe LCD splicing screen can clearly reproduce low-pixel images in a Full HD display; de-interlacing technology to eliminate flicker; de-interlacing algorithm to eliminate "aliasing"; dynamic interpolation compensation, 3D comb filtering, 10-bit digital brightness and color Enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling and other international leading technologies.
3.Better color saturationThe color saturation of ordinary CRT is only about 50%, and DID LCD can reach 92% high color saturation. This is due to the color calibration technology developed for the product. With this technology, in addition to color calibration for still images, Color calibration can also be performed on dynamic pictures, so as to ensure accurate and stable picture output.
4.A wider perspectivePVA (Patterned Vertical Alignment) technology is the "image vertical adjustment technology". With this technology, the viewing angle can reach more than 178 ° (horizontal and vertical).
5, better reliabilityThe ordinary LCD screen is designed for TV and PC monitors, and does not support continuous use day and night. The LCD splicing screen is designed for monitoring centers and exhibition centers, and supports continuous use 7x24 hours.
6, pure flat displayLCD is the representative of flat-panel display devices, it is a real flat-panel display, with no large curvature and distortion.
7, ultra-thin narrow edge designWith its unique design and exquisite manufacturing process, the LCD splicing unit has a qualitative leap from the previous DID LCD splicing screen unit, which can bring perfect visual enjoyment to the splicing user. The 3.5mm 65-inch LCD splicing screen is unilaterally spelled. The seam is only 1.75mm.
8, uniform brightness, stable image without flickeringBecause each point of the LCD splicing screen keeps that color and brightness after receiving the signal, it does not need to constantly refresh the pixel points like the CRT. Therefore, the LCD splicing screen has uniform brightness, high image quality, and absolutely no flicker.

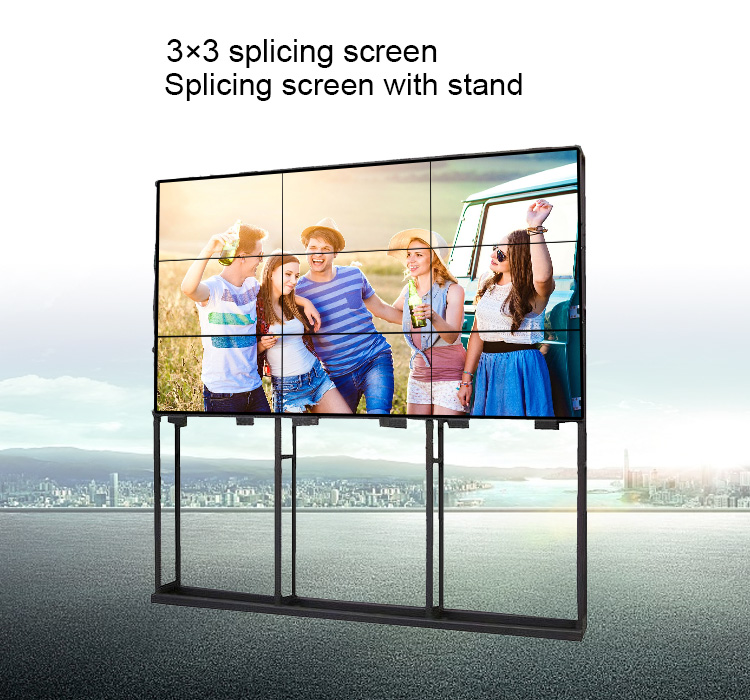

9. Splicing method is optionalThe number of LCD splicing screens can be arbitrarily selected (row (m) × column (n)), and the size of the screen also has multiple options to meet the needs of different use occasions.
10.Flexible and variable mosaic display combination functionThe LCD splicing screen installation can be personalized according to the requirements of different users, and select single-screen display, full-screen display, arbitrary combination display, image roaming, image overlay and other functions.
11, advanced screen parameter college functionsFor the LCD splicing wall, there may be parameter inconsistencies between the LCD screen and the driving circuit. The DID LCD splicing wall system has the function of adjusting the brightness, contrast, chroma, and white balance. After debugging, the parameters are automatically saved to ensure the entire splicing screen. Color consistency and brightness uniformity.
12, environmental healthCompared with rear projection (including CRT rear projection, DLP, etc.) splicing walls, LCD splicing screens have less heat, no radiation, no flicker, no eye damage, and no harmful substances (such as lead, mercury, cadmium, and chromium) , Is a new generation of environmental protection and health splicing wall.
13.Longer service life
The life of the backlight of LCD splicing screens used by ordinary NB, PC and TV is 10,000 to 30,000 hours, while the life of the backlight of ultra-narrow LCD splicing screens can reachLCD Specifications:
SAMSUNG LTI650FN01 Application DetailsBasic InfoBasic InfoPanel BrandPanel ModelLTI650FN01Diagonal Size65"Model AliasPanel Typea-Si TFT-LCD , LCMStorage Temp.-20 ~ 60 °CPixel FeaturesPixel Format1920(RGB)×1080, FHDDot Pitch0.124×0.372 mmConfigurationRGB Vertical StripePixel Pitch0.372×0.372 mmMechanical SizeDisplay Area1428.48(W)×803.52(H) mmOutline Dim.1432.58(W)×807.62(H) mmBezel Opening1428.68(W)×803.72(H) mmOutline Depth39.3 (Typ.) mmOutline FeaturesForm FactorFlat RectangleOrientationLandscape / PortraitAspect Ratio16:9 (H:V)Videowall Seam4.1 mm (Active to Active)Holes & BracketsSide mounting holes, Rear mounting holesOther FeaturesWeight13.5/14.2Kgs (Typ./Max.)SurfaceAntiglare (Haze 3%), Hard coating (2H)Optical DetailsBasic InformationBrightness700 cd/m² (Typ.)Contrast Ratio4000:1 (Typ.) (Transmissive)Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeS-IPS, Normally Black, TransmissiveViewing DirectionSymmetryResponse Time8 (Typ.)(G to G) msColor PerformanceChromaticityWx:0.279; Wy:0.292Color Numbers16.7M/1.07B (8-bit / 8-bit + Dithering)Color Temperature9972KUniformity1.54 (Max.)(9 points)1931 Color GamltNTSC Ratio72%sRGB98% coverageAdobe RGB75% coverageDCI-P375% coverageRec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)Frame Frequency60HzReverse ScanNoPower Consumption82.1W (Typ.)Power supplyAC 110V - 240V, 50/60HZ
Storage Temperature-7 to 65 Celsius degree
Normal Working Temperature-5 to 65 Celsius degree
Why choose us:1. >8-years professional manufacturing experience only in digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 2-years warranty, lifetime maintenance.FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.Q:Do you have stock?A:We keep 2000 units in Stock every single Month.Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers.quality is the first thing for us!Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
