Digital signage wall mounted

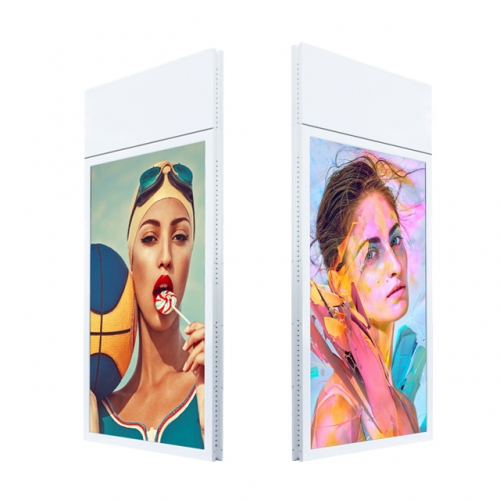

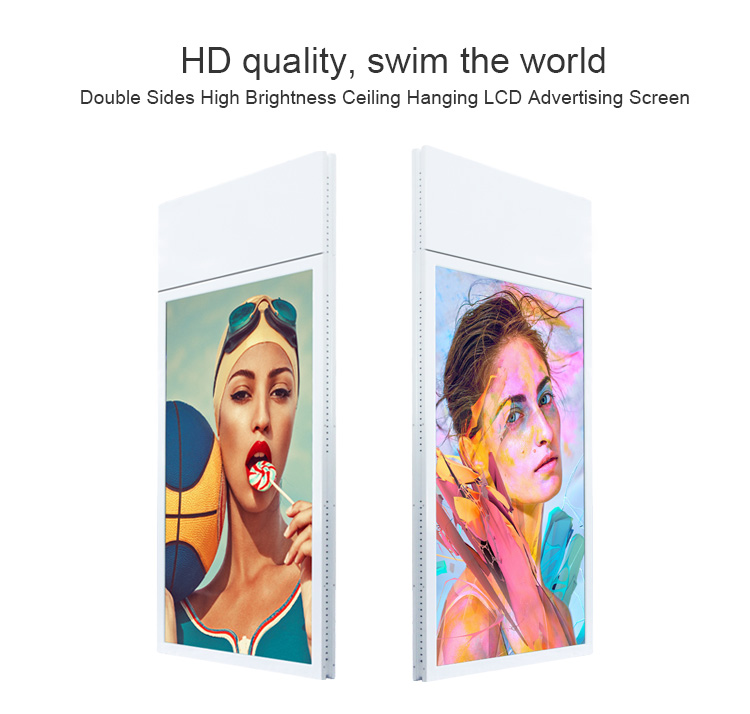

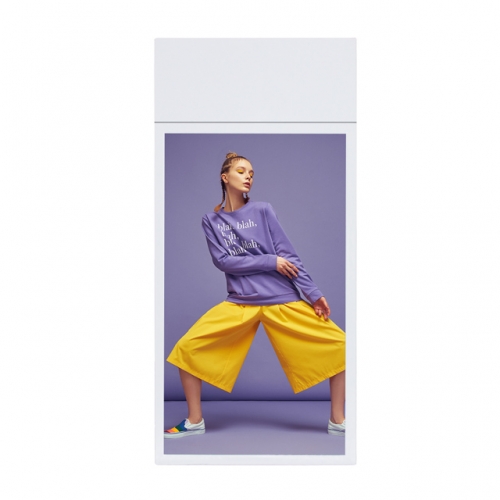

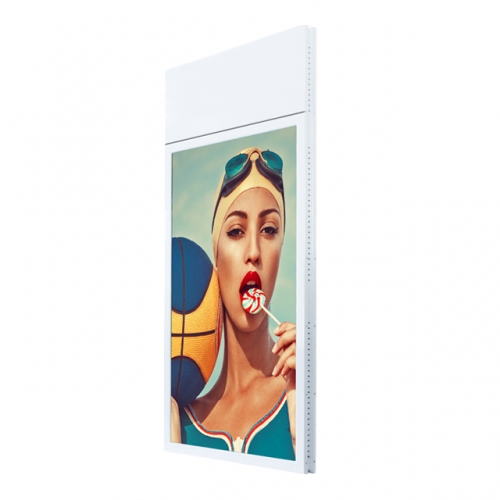

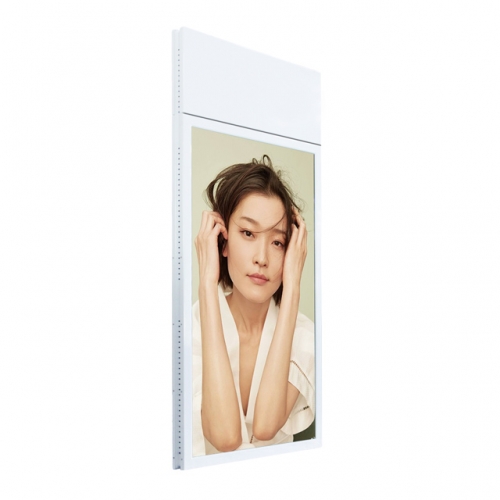

43’’ 49’’ 55’’ Double Sided Digital Advertising Signage Android wifi CMS remotely control
43inch 49 Inch 55inch option LCD Screen
Double Sided，700-700 Nits,Two Displays, Back To Back
22mm Thickness FHD 1920x1080
Android OS / Windows OS / TV Board
FHD 1920x1080 Metal case Ceiling install

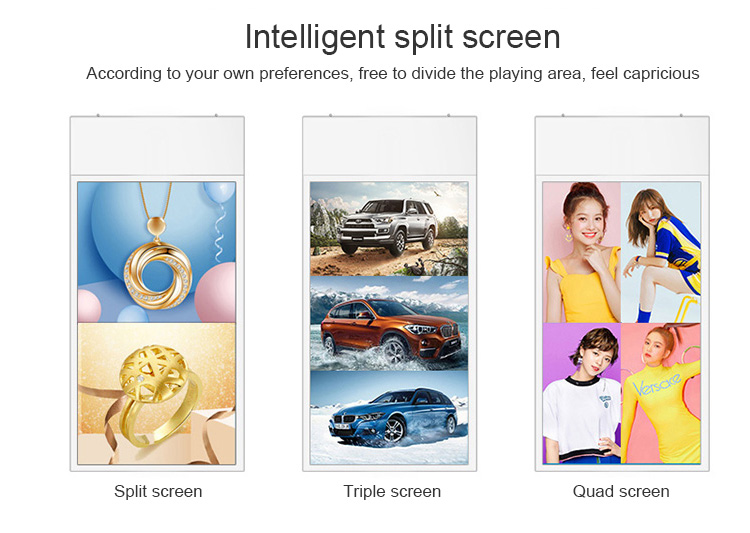

Two side screen Display Same Content and different content select
DDR3 2G 4G with memory 8G 16G 32G 64G
3mm tempering glass layer on the lcd panel
A grade Full new lcd panel BOE LG AUO
MOQ 1pcs Factory price, Support Customized LOGO

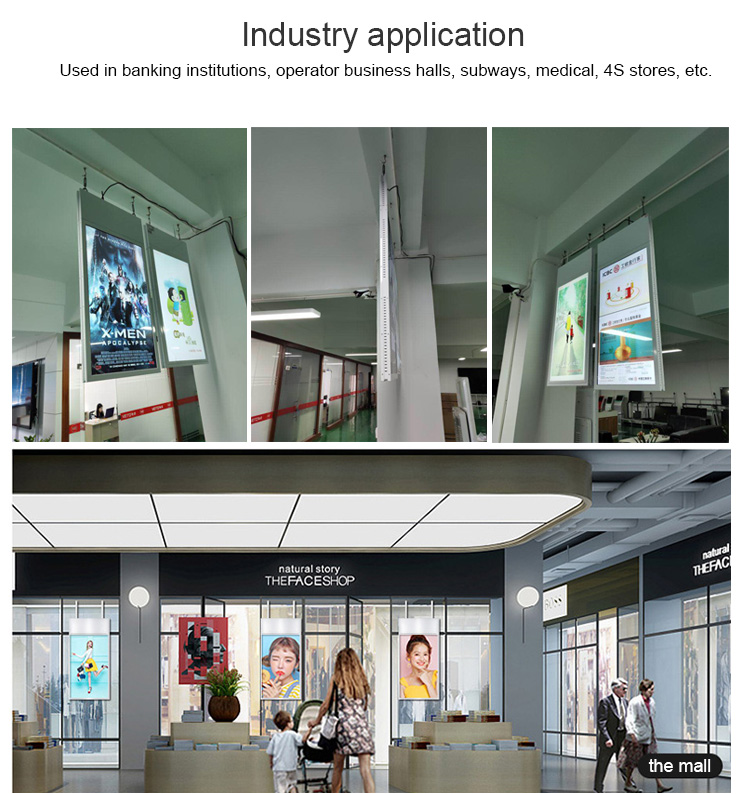

Application:Bank,hospital,Shop,Store,Shopping Center
-
43’’ 49’’ 55’’ Double Sided Digital Advertising Signage Android wifi CMS remotely control
Super-Slim Ceiling Window Display Mounts are designed exclusively for half outdoor lcd display. This sleek, double-sided mount is the ideal solution to showcase eye-catching, digital signage content that can be seen from both inside and outside a store window. With a multitude of installer friendly features, including concealed cable management for a professional appearance, this versatile solution can be adapted to suit a wide range of retail and commercial applications.

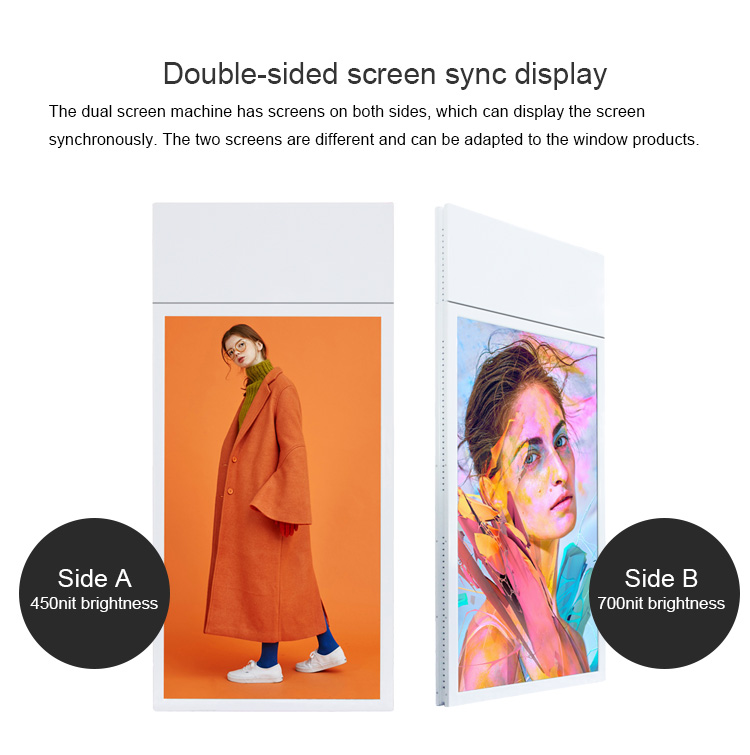

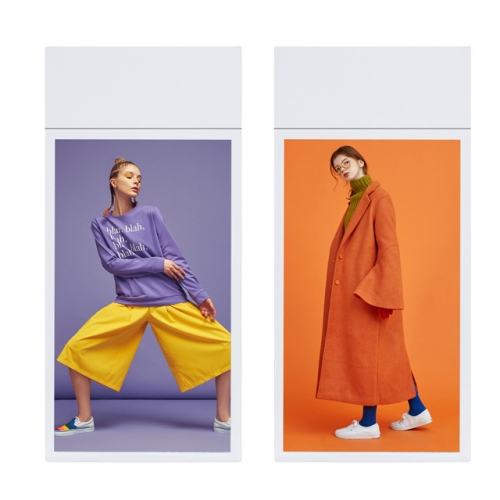

Double Side Window DisplayGrab the attention of onlookers with the outward facing, sunlight readable screen. Once your customers are inside the building you can then use the inward facing display to reinforce your message further.
Window Displays (700cd/m² high brightness)Brightness is paramount when using outward facing screens, these displays use commercial grade high brightness panels (700cd/m²); more than twice the brightness of a standard home TV to allow easy readability in window displays.
Plug and PlayThe Double Sided Hanging Displays come with a built in HD Android media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.Specification
Optional Network Upgradeyou can also upgrade your screen to be networked, allowing you to remotely update your screen via LAN, WiFi or 4G. To find out more about our Digital Signage CMS
Ultra Resistant to BlackeningWhen dealing with direct sunlight most LCD panels will overheat and the blackening on the panel will occur, we use a special ultra-high brightness panel that can withstand surface temperatures up to 110˚C with no blackening defect occurring making this the number one choice for Digital Signage in window displays.
Integrated Ceiling MountThe screen comes with an integrated wire hanging mounting solution so no additional ceiling mount is required. You can even hide unsightly power and data cables in the cover tubes provided.

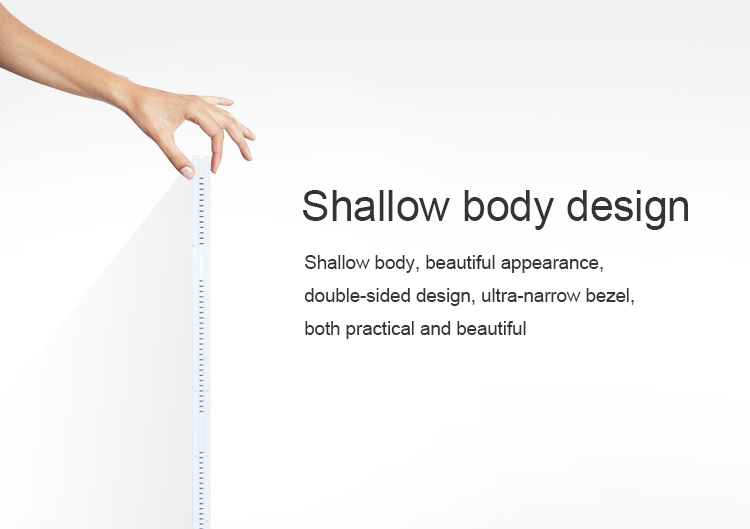

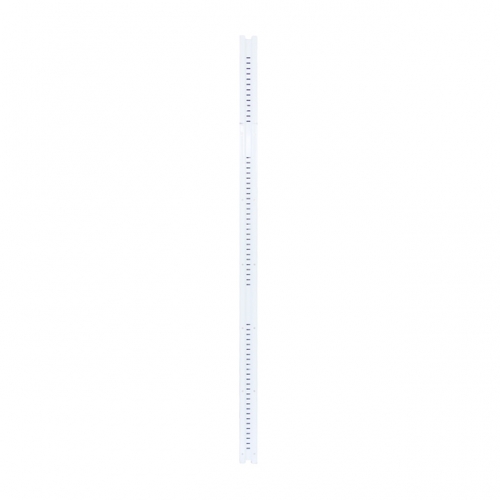

Super Slim DesignEven though these displays feature two separate screens they have a profile thinner than most single-sided displays. They have a remarkable depth of just 21.6mm, allowing for stylish and modern window displays.
Commercial Grade Panel and ComponentsFitted with a commercial grade panel, with a lifespan of 70,000 hours, and using high quality components ensures that the high brightness monitor displays can be in constant use 24/7.
Built-in SpeakersThe Hanging Double-Sided Window Displays displays have two integrated slimline speakers for applications that involve an audio element.
Power TimerThe eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.
Model YMS-430 YMS-490 YMS-550 Size 43 49 55 OS System Android 5.1 CPU RK3288 DDR 2G NAND Yes WIFI Yes LAN Yes USB Yes Remote Server Update content wireless through the web 4G / 3G Option Auto Standy Automated on / off timing by hour, day,week Speaker 8Ω 2W x 2 Panel Panel Size (inch) 43" 49" 55" LCD Manufacturer LG / Samsung / Sharp / AUO LG / Samsung / Sharp / AUO LG / Samsung / Sharp / AUO Active Display Area (h x w mm) 941 x 529 1073 x 604 1210 x 680 Resolution (pixel) 1920 x 1080 1920 x 1080 1920 x 1080 Aspect Ratio 16 : 9 16 : 9 16 : 9 Brightness (nits) 700 - 700 700 - 700 700 - 700 Contrast Ratio 1100 : 1 1100 : 1 1100 : 1 Grey to Grey Response Time (ms) 6 ms 6 ms 6 ms Viewing Angle (H/V) 178°/178° 178°/178° 178°/178° Backlight Configuration LED light LED light LED light Operational Life Cycle-mtbf (hours) 50000 50000 50000 Power Input Voltage AC220/110V ± 10%, 50 / 60 HZ Max Power Consumption (w) 160 165 180 Enclosure Material IP Rating IP4X IP4X IP4X Enclosure Material Aluminum Aluminum Aluminum Glass Type N / A N / A Acrylic Unit Dimension (w x h x d mm) 630 x 1210 x 22 704 x 1350 x 22 784 x 1500 x 22 Bezel Width (mm) 50.5 50.5 52 Weight (kg) 15 18 25 Environment Operating Environment Window, Indoor Window, Indoor Window, Indoor Operating Temp. 0℃ ～ +40℃ 0℃ ～ +40℃ 0℃ ～ +40℃ Operating Humidity 10% ~ 80% 10% ~ 80% 10% ~ 80% Operating Altitude (m) ≤ 2000 ≤ 2000 ≤ 2000 Option Windows OS 4/8/16/32G 128/256/512G Win7/10 32/64bit TV Board Master / Noatek VGA/HDMI/USB
Why choose Shenzhen Yaimeishi Technology Co.,Ltd:1. >8-years professional manufacturing experience only in LCD digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 1-year warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers. We have two brand brands in China: "FVASEE" and "HSCHN", "FVASEE" is the top 5 brand in China, quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
Shenzhen Yameishi Technology Co., Ltdwas founded in 2015 which is an engineering and manufacturing company focus on various advertising equipment. Including: media player, Outdoor waterproof digital signage, LCD displays advertising screen, monitors, Wireless network Ad player, Bus media player, Ad player media box, DID Video Wall etc.
Our workshop covers an area of 5000 square meters equipped with 5 modern professional production lines , over 20 senior engineers and assembly assistant and 2 professional after-sales engineers , all the staff must be trained in pre-service, the current daily output can reach to 500 units.
