Outdoor lcd screen

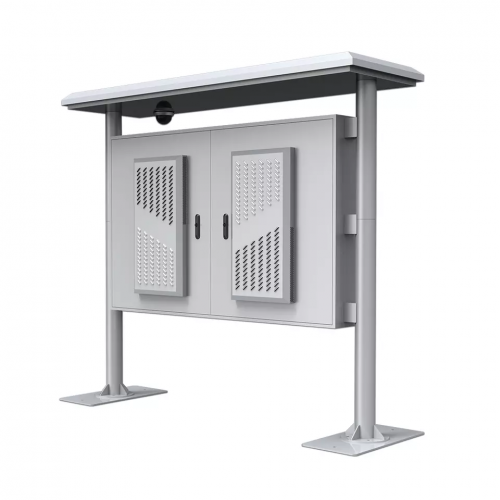

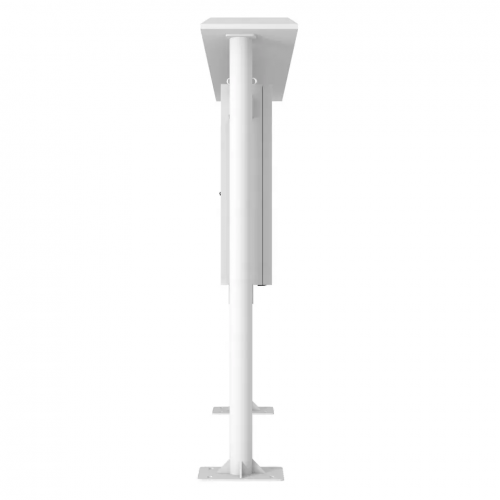

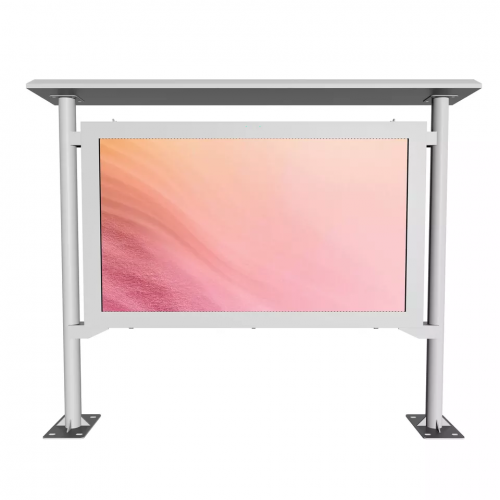

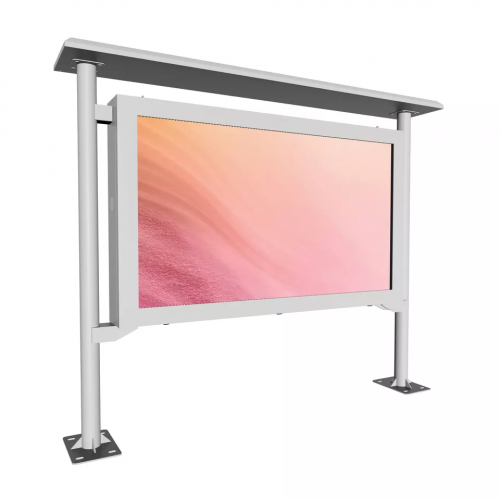

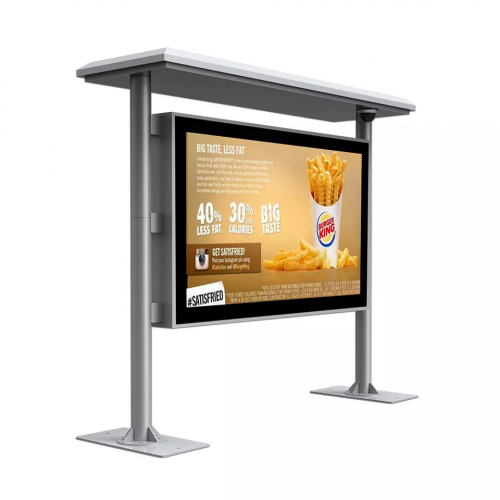

65 inch Outdoor Capacitive Touch lcd Advertising Display Sunlight Readable IP65 Waterproof bus stop LCD totem
1. Imported metal paint, antimagnetic, anti-static, imported waterproof materials, outdoor all-weather waterproof and dust-proof, anti-theft, explosion-proof and other designs;
2. Strict electrical protection: leakage, overload, overvoltage protection, lightning protection device, over temperature protection, etc;
3. Audio: dual channel, stereo surround power amplifier system, output power 8 Ω 2 × 10W；
4. The working environment design standard is+55 °~- 30 °, and the stable and reliable air-cooled structure heat dissipation plus aluminum military grade heat dissipation base plate is used for cooling;
5. High permeability anti glare glass: 5mm AR anti glare glass;
6. Each system of the whole machine adopts the modular design principle, and is designed for sustainability and maintainability;
-

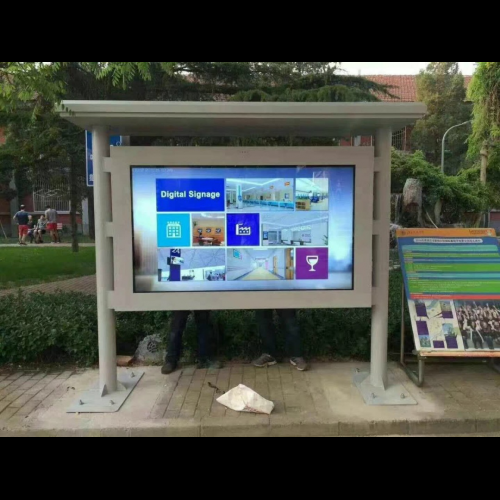

Bus Station Outdoor Advertising Lcd Display Digital Signage Information Boards Kiosk
◆ The whole machine adopts highly integrated modular design, standardized electrical design and clear working state. Fast maintenance is possible.◆ Super long service life, 7 * 24 hours of uninterrupted work, up to 60000 hours.◆ The front panel has a waterproof grade of IP65 and is made of all metal outdoor baking paint, which is moisture-proof, UV resistant and anti-aging.◆ Super bright industrial LED backlight is used, with brightness up to 2000cd/m2. With special anti glare glass, the image is clearly visible under strong light.◆ The intelligent precise temperature control system is adopted, which can not only heat up and save energy, but also not affect the display effect.◆ Automatic environmental light sensing, high temperature protection, anti surge, leakage protection, overvoltage overload, waterproof and anti-theft protection, etc.◆ The built-in industrial motherboard can control every digital sign of the network at any place with the Internet anywhere in the world. Support large capacity SATA hard disk, SD card storage media and USB2.0 interface, so that your machine can update programs efficiently through U disk when there is no group.◆ It supports 1920 * 1080 high-definition video decoding, multiple split screen programs, RSS, PDF, slide show, TXT subtitle files, etc., to perfectly show the charm of multimedia digital advertising for you.
ComponentSpecificationparameterRemarkStructureOverall dimensions1420*885*200 mmDisplay area1209*680 mmgrassUsing 6mm high permeability toughened glassoptionalDisplay size49/55/65 inchDisplay ratio16:09Resolution1920*1080/3840*2160Display screenBrightness2500nitsoptionalViewing angle178° horizontal / 178° verticalBrightness controlautomaticBacklightLED backlightTouch10-point touchNulloptionalDefault configuration motherboardA20 dual-core Android solutionoptionalMotherboardWIFINulloptionalPlayback softwareSupport network program release,
local program update, stand-alone mode playbackSwitching power supplyIndustrial grade power supplyWaterproof speakerWaterproof high-quality 10W speakerElectric controlLightning protection deviceThree-level lightning protectionleakage protectorAnti-leakageTimerCustomized switch machine can be set according to day, week and monthWorking parametersOperating temperature-30℃~50℃Operating humidity5%~95%Operating VoltageAC 110V~220V/50HzMax power consumption380 W
