Lcd video wall

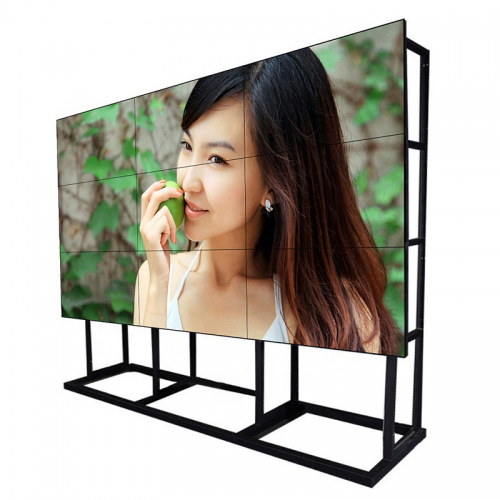

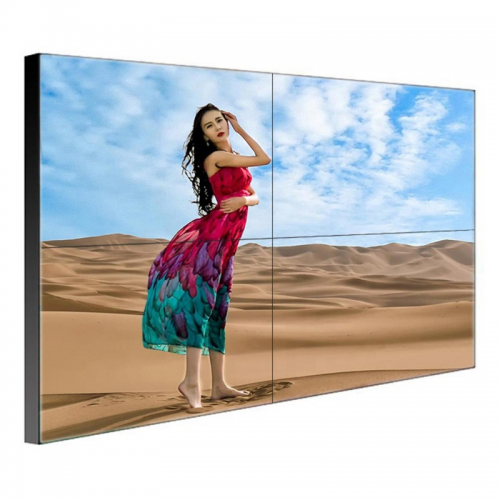

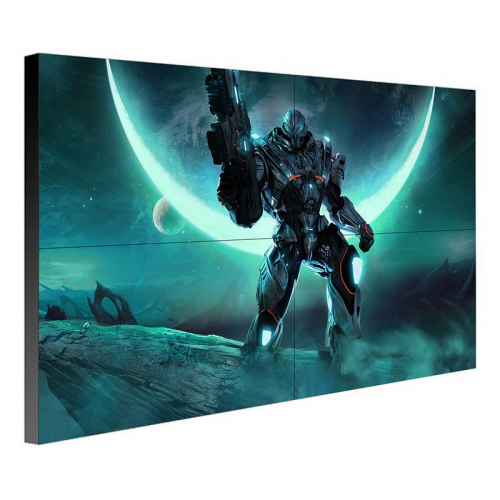

46inch 2x3 super slim 5.5mm wall mounted digital signage lcd video wall controller
Shenzhen Yameishi 46‘‘ LCD VIDEO WALL :

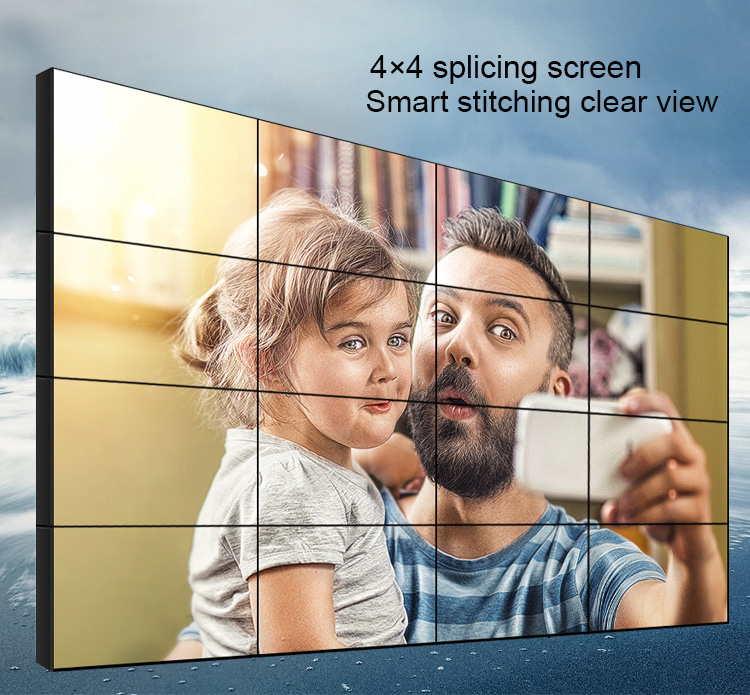

The splicing screen is a complete finished product, that is, hanging and using. The installation is as simple as building blocks. The splicing and installation of single or multiple LCD screens are very simple. The edge of the splicing screen is only 2.8mm wide. The surface of the splicing screen is also equipped with a protective glass layer, a built-in intelligent temperature control alarm circuit and a unique "quick dispersing" cooling system. The splicing screen has everything, not only for digital signal input, but also very unique support for analog signals. In addition, there are many splicing screen signal interfaces. The use of splicing screen technology enables simultaneous access of analog signals and digital signals. Can achieve 3D smart effects. The splicing screen series products adopt unique and cutting-edge digital processing technology, allowing users to truly experience the full HD large screen effect.Configurable Up To 10 x 10 Screens
-

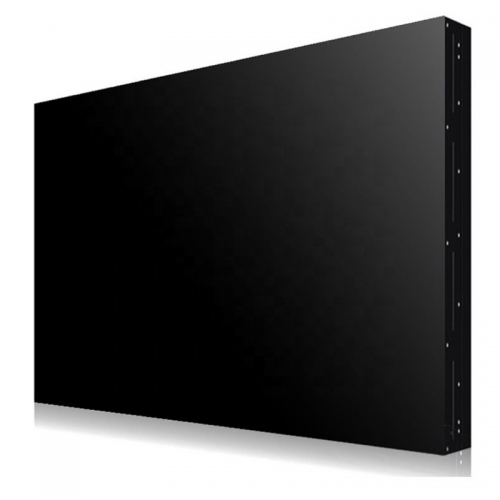

46‘‘ DID Splicing screen Support HDMI, Display Port, and RS232C Input InterfaceDesign for 24 / 7 / 365 OperationScissor, Swing Door, Floor Stand, Custom Design MountWhen you buy a video wall bundle, you get wall mounts and a cable for daisy chaining, creating a ready-to-go solution.Description:1).Borderless design with its 0.9mm even panel bezel,total gap 1.8mm, enables immersive and near seamless viewing experiences on assembled video wall screens.Panel Bezel : The black matrix section where an image is not displayed on the front panel(Bezel to Bezel) : Panel Bezel + Panel Bezel (Borderless type, no metal bezel)2)Clear Viewing Angle,Ensure clear picture quality, even when installed in arrays of more than four, ideal for installations in large spaces. The angle from the center of the screen to have 50 of the initial luminance.3).Uniform Brightness,Samsung/LG’s LED backlight technology provides high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, high visibility and a consistent brightness across the whole screen.4).LAN Daisy Chain Performance,The LAN daisy chain allows you to execute commands to control and monitor the screens, and even update their firmware.5).Guide Bracket / Classified Port,A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.6).Control Buttons,With 8 control buttons, it’s easy to operate various functions of the 49VM5C, such as controlling the OSD (On Screen Display) and changing the input source.Specifications:

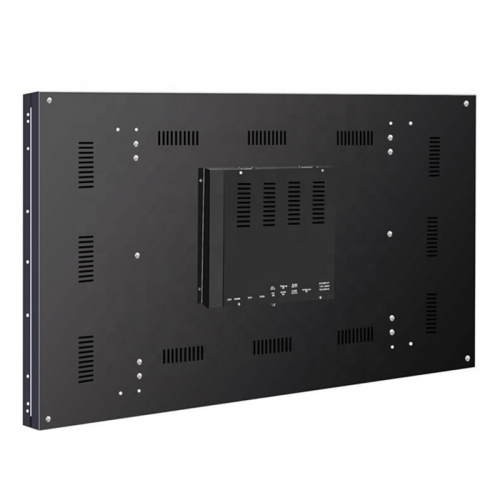

LG Display Application DetailsBasic InfoBasic InfoPanel BrandPanel ModelLTI460HN09Diagonal Size46"Model AliasLTI460HN09Panel Typea-Si TFT-LCD , LCMStorage Temp.-20 ~ 60 °CPixel FeaturesPixel Format1920(RGB)×1080, FHDDot Pitch0.17675×0.53025 mmConfigurationRGB Vertical StripePixel Pitch0.53025×0.53025 mmMechanical SizeActive Viewing1018.08(W)×572.67(H) mmOutline Dim.1023.98(W)×578.57(H) mmBezel Opening1018.28(W)×572.87(H) mmOutline Depth56.2/79.5 (Typ./Max.) mmOutline FeaturesForm FactorFlat RectangleOrientationLandscape / PortraitAspect Ratio16:9 (H:V)Videowall Seam5.5 mm (Active to Active)Holes & BracketsSide mounting holes, Rear mounting holesOther FeaturesWeight13.5/14.2Kgs (Typ./Max.)SurfaceAntiglare (Haze 3%), Hard coating (2H)Optical DetailsBasic InformationBrightness500 cd/m² (Typ.)Contrast Ratio3500:1 (Typ.) (Transmissive)Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeS-IPS, Normally Black, TransmissiveViewing DirectionSymmetryResponse Time8 (Typ.)(G to G) msColor PerformanceChromaticityWx:0.280; Wy:0.290Color Numbers16.7M/1.07B (8-bit / 8-bit + Dithering)Color Temperature9972KUniformity1.33 (Max.)(9 points)1931 Color GamltNTSC Ratio71%sRGB100% coverageAdobe RGB74% coverageDCI-P374% coverageRec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)Frame Frequency60HzReverse ScanNoPower Consumption82.1W (Typ.)Power supplyAC 110V - 240V, 50/60HZ
Storage Temperature-7 to 65 Celsius degree
Normal Working Temperature-5 to 65 Celsius degree
video wall lcd 46inch;lcd video wall processor;lg lcd video wall;3x3 lcd video wall
Why choose us:1. >8-years professional manufacturing experience only in digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 2-years warranty, lifetime maintenance.FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.Q:Do you have stock?A:We keep 2000 units in Stock every single Month.Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers.quality is the first thing for us!Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
