Outdoor lcd screen

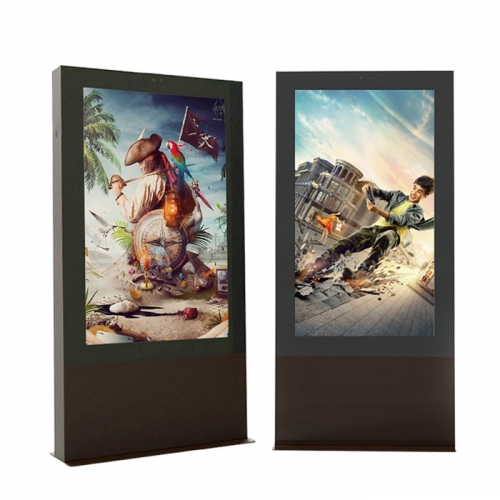

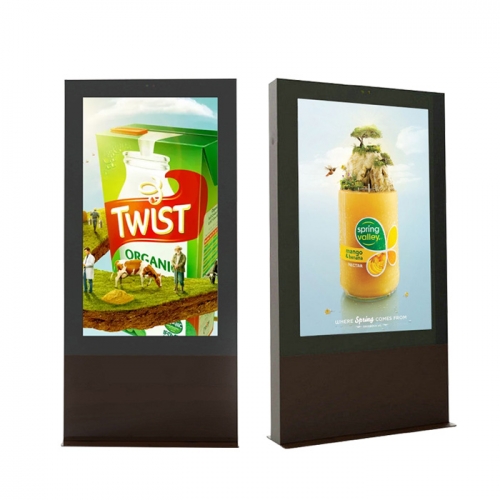

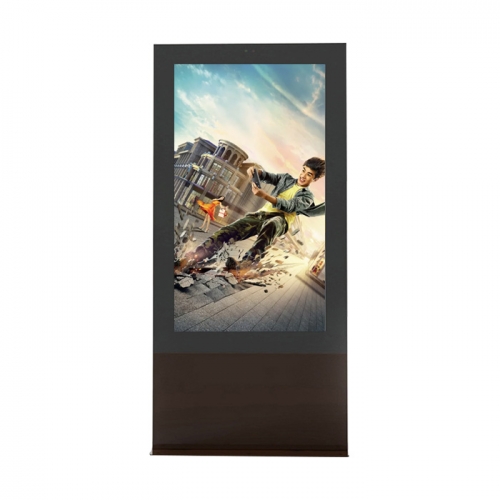

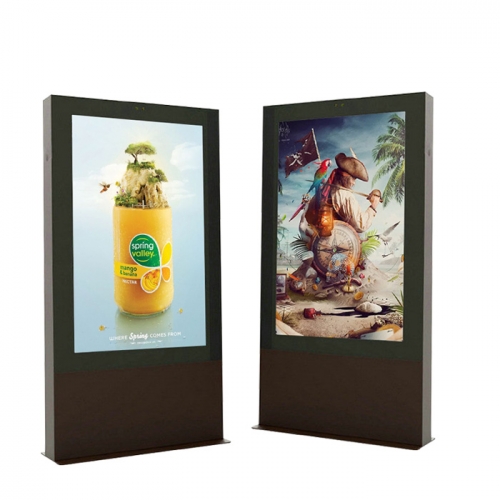

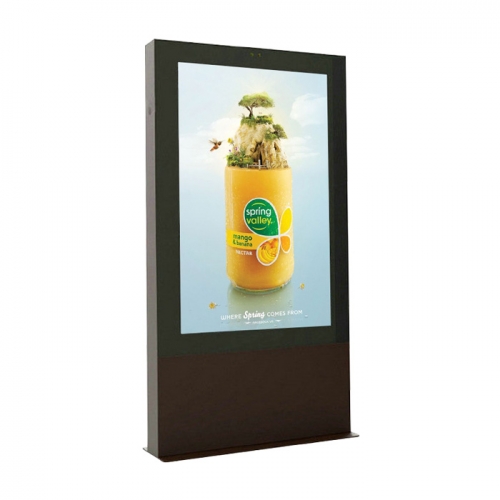

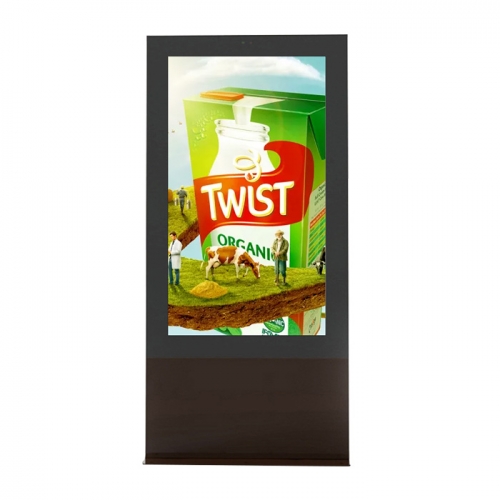

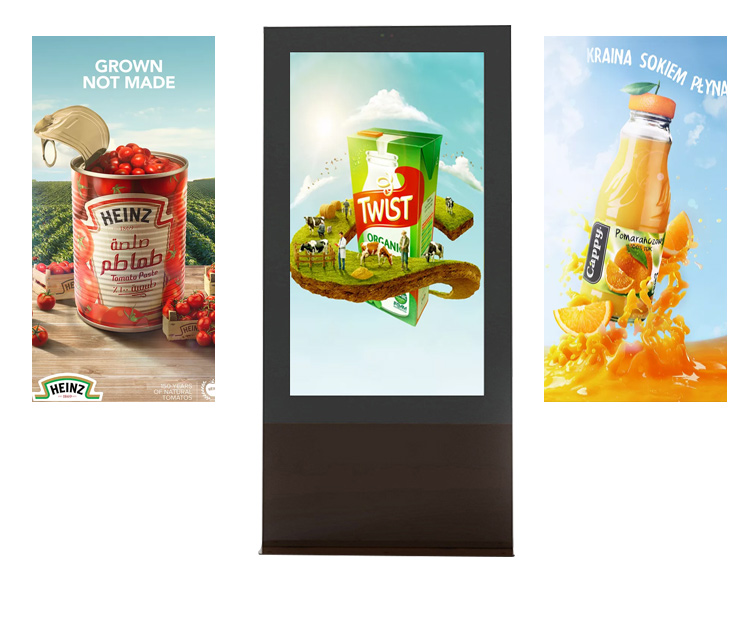

Shenzhen Yameishi 65‘‘ high brightness 2500cd touch screen outdoor digital signage advertising display
Shenzhen Yameishi 65inch outdoor touch screen lcd kiosk with intelligent temperature control cooling / heating system ensures the machine to work stably in the best environment.

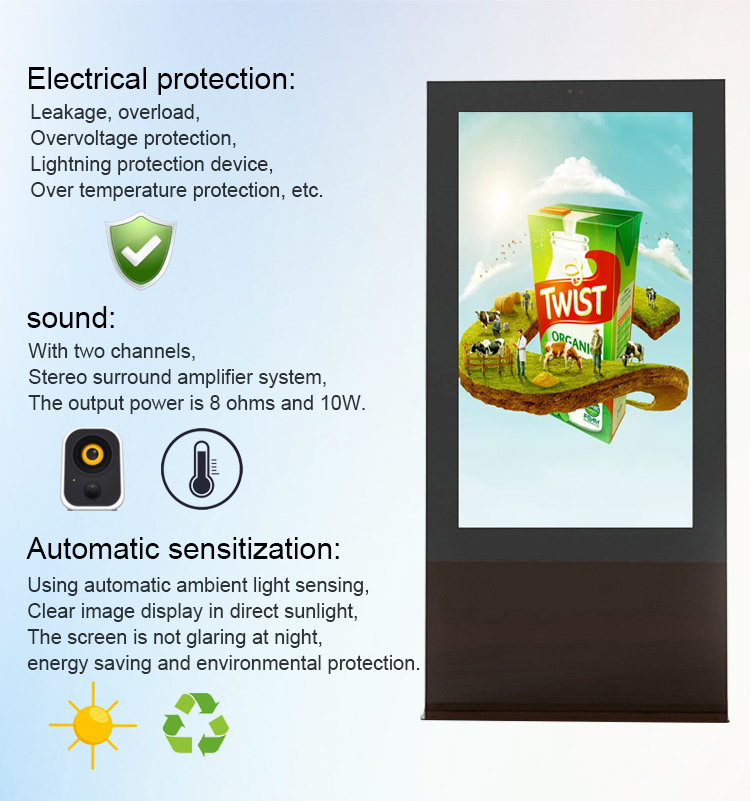

Each playing area can be arranged and layered freely, and can be played on horizontal and vertical screens； Screen Area Free Segmentation, composable picture, audio, video, web page, clock, date, caption, mixed material editing; Support Program and broadcast table preview, real-time monitoring playback screen, multi-stage timing switch settings, automatic reset;Low temperature self-starting heating module:The temperature of self-checking probe can control the rotation speed of the fan to save energy and prolong the life of the fan,Intelligent temperature sensing system, high temperature automatically turn off the display.The air inlet and outlet are designed with special dust-proof filter (medium and high efficiency dust-proof filter) to filter,find dust in the air and prevent mosquitoes and insects from entering the machine.Can Be set by day, week, month custom switch machine.When the leakage current is greater than 30MA, the circuit should be disconnected to protect the human body,Self-check outdoor lightning strike 40kA surge current, play a 3-level lightning protection effect, to protect the safety of equipment.Using industrial-grade power supply.
-

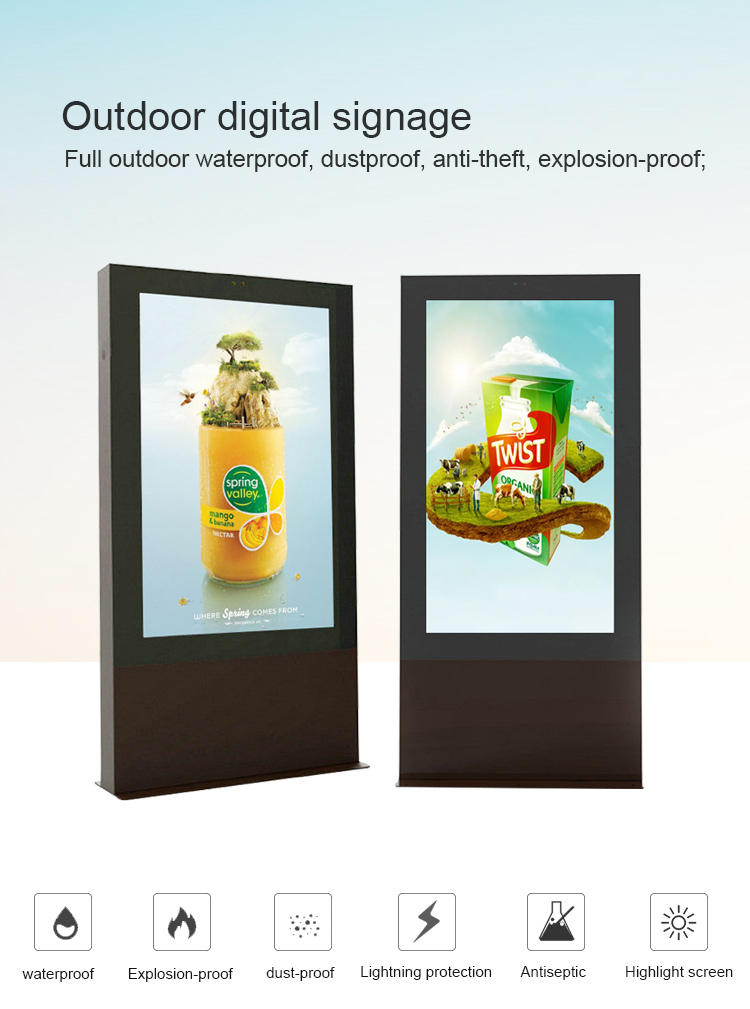

65-inch high brightness 2500cd touch screen outdoor advertising floor stand digital signageDescriptionWidely used in outdoor advertising display, traffic indication, etc.The whole IP55 protection level, dustproof, waterproof, can be fully installed outdoorsSun VisibleWork normally under wide temperature conditionsCan provide remote publishing system, outdoor touch screen solutionsCustomizable design and production42-82inch in stock nowFeaturesFloorstanding mounted, easy to maintainFull outdoor waterproof design, outdoor protection level reaches IP55High-brightness LCD screen with anti-reflection design to achieve sunlight visibilityPatented temperature control, no blackening under direct sunlightIntelligent fan cooling system, the internal temperature of the machine works, the backlight brightness of the LCD display runs for a long time without attenuationSolutions for applications such as outdoor information distribution systems that can be customized for industry use Solution.Product technical characteristics1.The overall outdoor structure achieves IP55 waterproof and dustproof2.Designed with a variety of mounting methods for back-mounting or custom installationHighly transparent glass for improved visibility of the display, AR anti-glare for clearer image quality in the sun3.The metal casing of the galvanized steel plate is matched with outdoor anti-rust powder, and the outdoor anti-corrosion achieves high contrast for more than 7 years4.High-brightness LCD screen with brightness up to 2000cd/m25.backlight is used, the life span reaches 100,000 hours, environmental protection and energy saving6.High dynamic contrast and clearer display7.Accurate temperature control combined with heat dissipation scheme, display 7*24 hours working brightness without attenuation8.1920*1080 Display resolution up to 1920*1080Temperature control system1.Precision intelligent direct ventilation system to ensure the best working environment for internal electronic components2.Patented thermal design ensures no blackening of the LCD screen in an outdoor-35-+55 degree environment3.Independent research and development environment control board, built-in fan speed control, speed and temperature display, heating functionProduct Specifications:
surfaceboardSenatenumberPanel type65" LCD panelDisplay size1428.5*803.5Display scale16:9Backlight typeLEDResolution1920*1080Brightness2000cd/m2Contrast3000:1Viewing angle178°(H) / 178°(V)Service life60000 hoursFront protective glass6mm AR laminated glass99.99% sun UVMore than 50% of solar radiation
Light transmittance is over 93%
Reflectance is less than 3%The total heat insulation rate of sunlight is over 50%
Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater)
cooling systemFully intelligent independent research and development of cooling system
Voltage 24VOperating voltage 20.4-27.6VStarting voltage 12VAverage speed 2400 rpm minimum speed 2160 rpm
Average current 0.26A maximum current 0.312
Access to power average 3.12 max 3.74
Average airflow 74 minimum airflow 66.6
Average static pressure 2.0 Minimum static pressure 1.8
Noise 33dbIt can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees.
Electrical partsBacklight power supplyAccording to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers)
Automatic light perceptionAutomatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness
Lightning protection deviceZhengtai lightning protection device
AC contactorChint AC contactorMicrocomputer time switch
Time switch can be set in different time periods. More than 20 groups can be set.
power inputAC 108-115V AC 208-240VTotal power300WNanocapacitor touch filmTypesNano touchTouch modefingerTouch effective recognition》5mmTouch accuracy±5mmTouch points10 PointsFirst response time10 millisecondsNumber of touchesAnyworkMakeringterritoryFan power supply24VScreen display and backlight power supply24V+12V hybrid power supply 200-400W
Operating temperature-35-55°Product relatedstorage temperature-20°C to 60°CWorking humidity5% to 100%Storage humidity5% to 100%Installation methodFloor-mounted installation
External structural memberShape packagingUse pearl cotton shock absorber + wooden frame packagingExterior colorblackshell materialHot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder
Gross weight180KGApplication of Shenzhen Yameishi Outdoor lcd kiosk:
1. Bus Shelters / Train StationAdvertising Display In Bus Shelters / Train Station, Collect The Gaze Eyes And High Footfalls Near Bus/Train Stops2. Street Totem KioskFor Pedestrians And Vehicles On The Road, 75inch Large-Size 4k Advertising Promotion And Information Display.At The Same Time Can Provide Daily Map And Information Query3. Retail DisplayStand Outside Buildings, Stores, Restaurants, Supermarket, Parking Station EtcProvide Classified Advertisements For Different Crowd. Easy Renew The Promotion Advertising Every Day, Every Time.4. Brightness AdjustableBrightness adjustable, Let The Screen Display Adjust Based On Different Time Of Day And Night, Which Can Provide The Best Experience To The Viewer. It Also Allows To Extends The Life Of Screen And Save Energy Costs, Lower Heat5. Various ContentSupport Video, Picture, File, Audio, Subtitle, Webpage Etc6. Long Remote Content Management SystemEngineers can achieve 90% monitoring and management in the officeSupport long-distance online publishing, monitor current broadcast programs, manage multiple devices etc
