Outdoor lcd screen

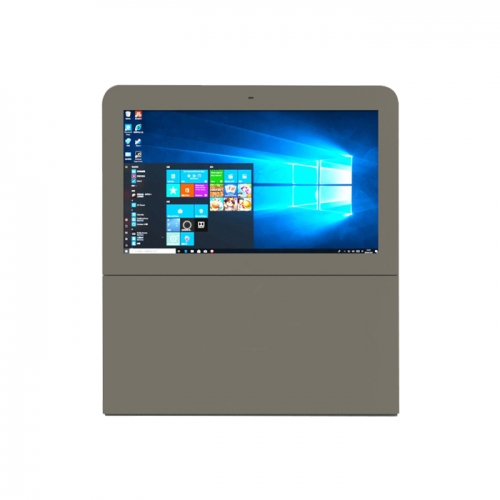

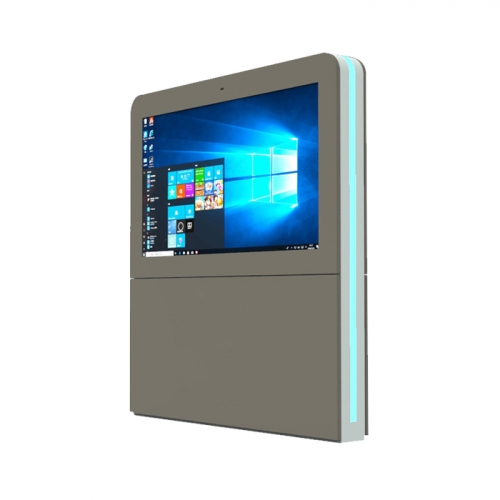

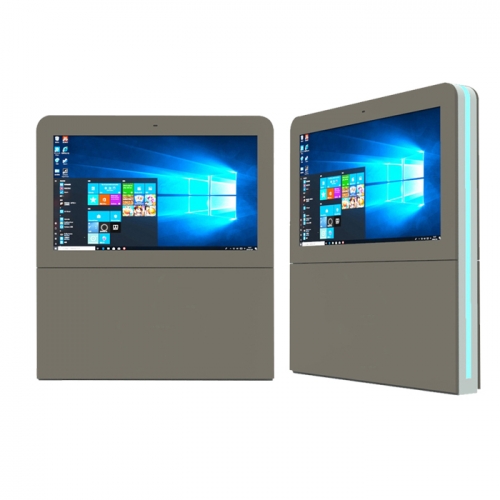

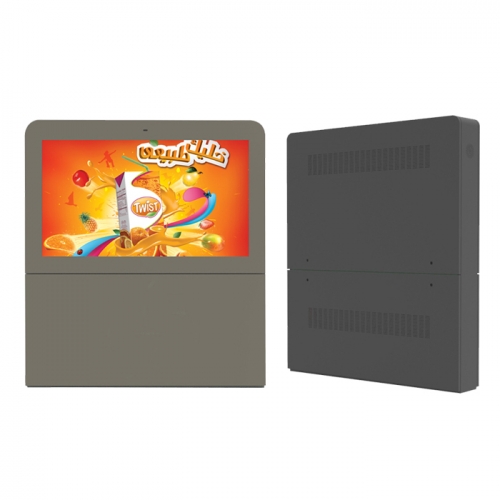

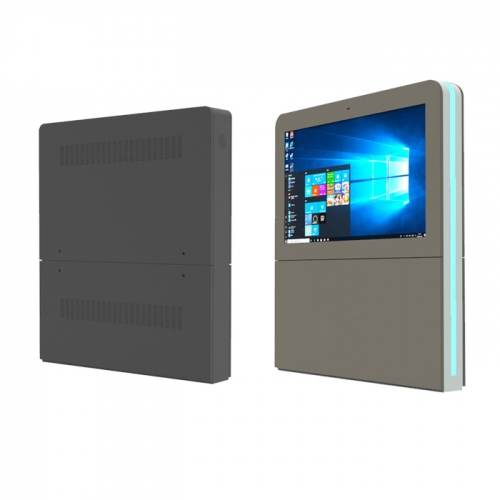

Yameishi Sunlight readable 43/55/65/75 Touch All in One PC Windows OS IP66 lcd standing totem screen
-

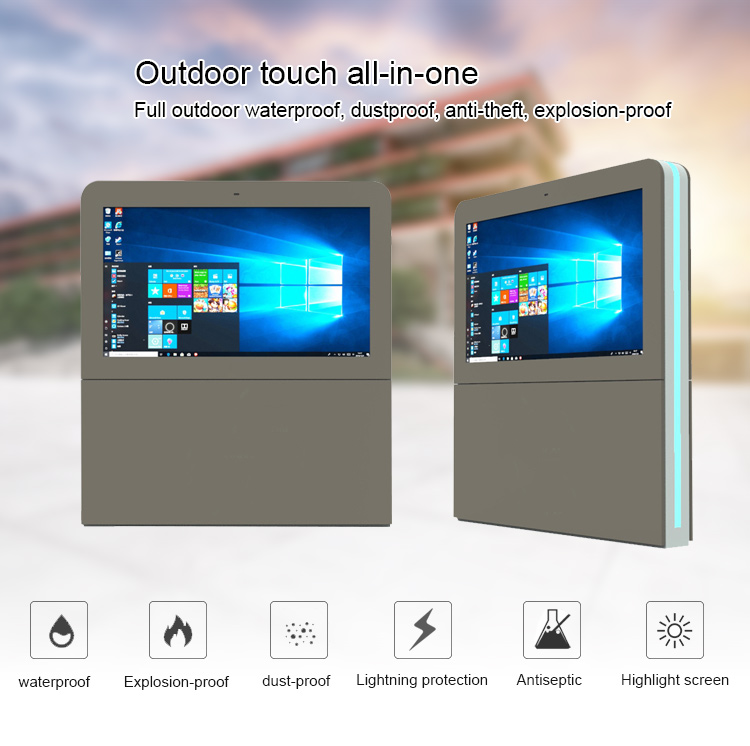

Horizontal Outdoor sunlight readable 43/55/65/75 Touch All in One PC Windows OS IP66 lcd standing totem screenAnti-Reflective Ultra Bright Screen. Customers can be confident that in any type of weather condition, day or night content will be visible. Temperature regulated case to ensure the screen does not over heat or will not freeze. With its sleek design and color options of black, this kiosk is a standout in any location. Built-In Media Player included.Panel Type A+ TFT-LCD IPS Panel 55 inchView Area 1209.6×680.4mm(W*H)Show Ratio 16:9Backlight Patented LED module + Constant power componentsShow Color 16.7M 68% (CIE1931)Brightness 2000 - 3000 nits Sun-readableContrast Ratio ≥4000:1Visual Angle 178°(H) / 178°(V)Response Time ≤5msS-System PAL / NTSC / SECAMLife Expectance 60000 HoursPlay mode Circulation, timing, inter-cutting etc.Network Ethernet, wifi, 3G, 4G is optionalVideo format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.Picture format BMP, JPEG, PNG, GIF etcNetwork Protocol TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTPOperation System Linux, Android, WindowsEnclosure cold-rolling metal plate + Specialized outdoor paintWhole Color Silver / Grey / White / Black or CustomizedHeat Control Industrial Fan-cooling / Air-conditioningProtective Glass 6/8 mm AR-laminated tempered glassProtective Level Fan-cooling≤IP55 /Air-conditioning≥IP65Speaker 2*10W StereoControl Interface USB, SD Card, HDMI, VGA, DVI, RJ-45, WIFI, 3GSupport Project Player Alone, Network, Touch ScreenDimension 1409.6x880.4x220 mm (Customized)N.W / G.W 122KG /148 KGAccessories Remote Control, AC Power Cord, Key, Rack, Instruction, Approval Certificate,Warranty CardWork Temp -30℃ to 55℃Storage Temp -35℃ to 60℃Work Humidity 10% to 90%Storage Humidity 10% to 90%Power Voltage AC100V-240V (50/60Hz)Consumption ≤ 700WStandby ≤3W
DisplayPanel55‘‘(65‘‘ 75‘‘ 85‘‘ 86‘‘ 98‘‘ 100‘‘ optional)

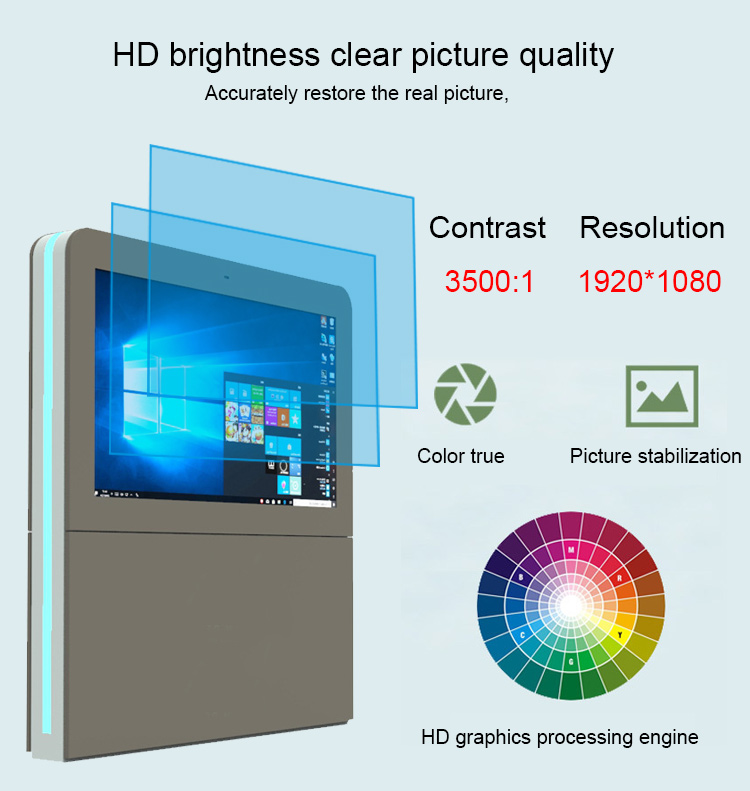

Resolution3840*2160Brightness2500cd/m2Contrast4000:1SystemAndroid OSQuad core CPU Cortex A53, 2G RAM; 16G Storage;

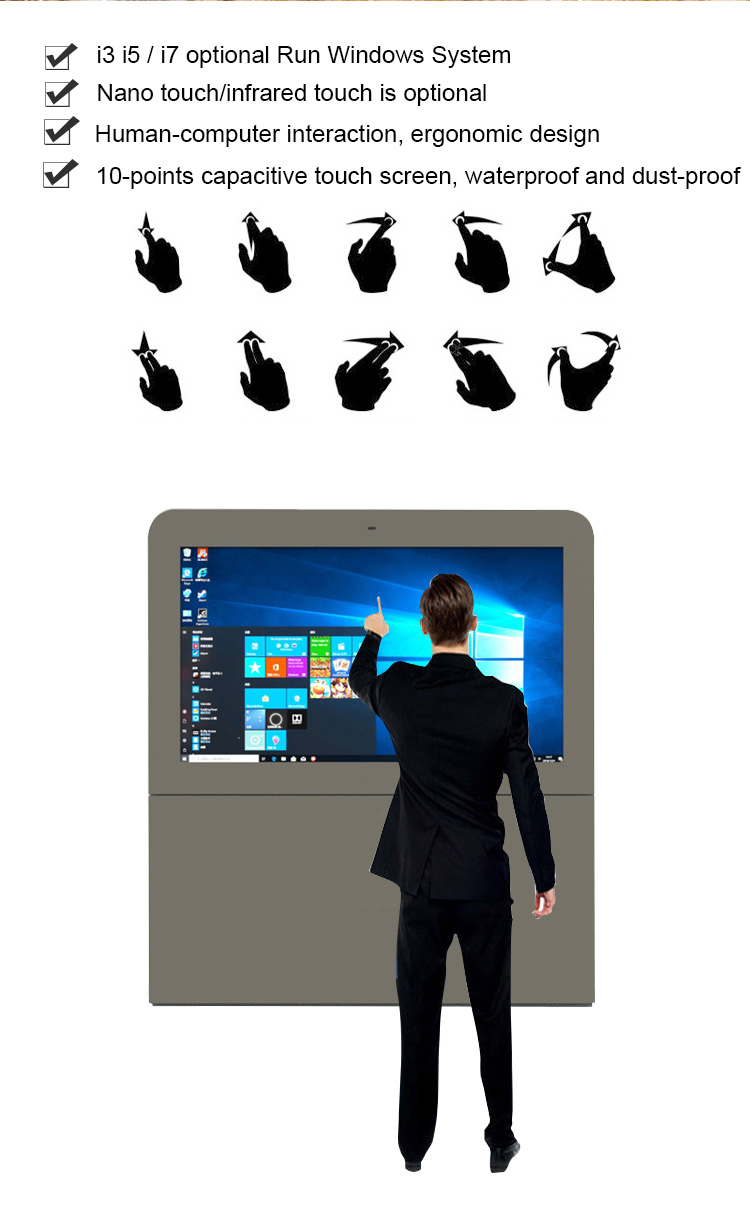

OPS(optional)Intel i3 quad Core CPU, 3.2G Hz, 4G RAM, 128G SSD; (Can customize Intel i5 or Intel i7 )

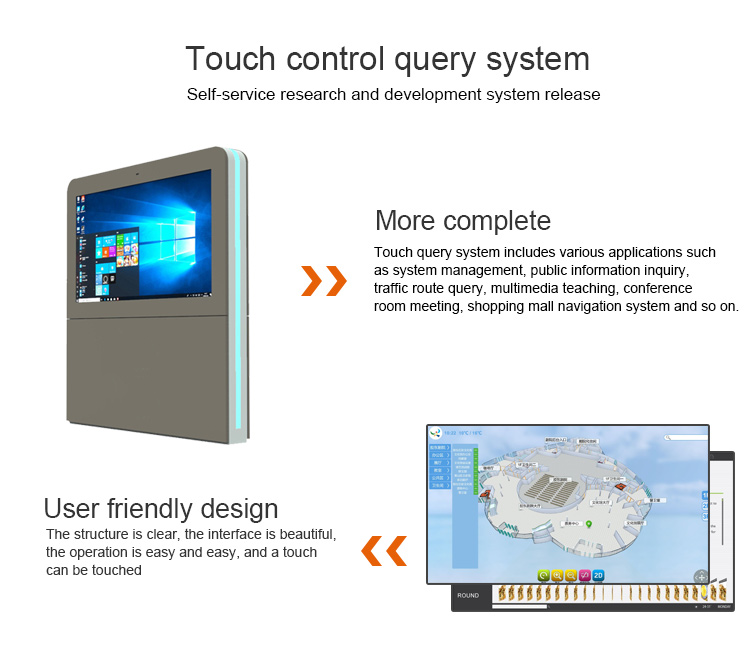

WIFISupport WIFI connectionIR TouchTouch TypeG+G Capcity touch screenPoints10 points(available for 20 points)
Resolution1920*1080InterfaceUSBUSB*4COMRS232 COM*1HDMI InputHDMI*3AV InputAV*1VGA InputVGA*1MIC Audio InputMIC Audio*1HDMI OutputHDMI*1VGA OutputVGA*1AV OutputAV*1Line Audio OutputLine*1Touch USB PortTouch USB Port*2NetworkRJ45*2, WIFI*2CPURK3288 Cortex-A17 Quad core 1.8 GHZ
GPUMali-T764 GPU,Support AFBC(frame buffer compression)OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3,
MemoryDDR3 2GB 64bit
Built in memoryNAND FLASH 8GB / EMMC 8G,16G,32G
Operating systemAndroid 7.1/9.0OSD languageDefault English for multiple languages
Playback modeIt supports multiple playback modes such as loop, timing and insertion
Network supportEthernet, supporting WiFi and wireless peripheral expansion
Video playbackFormat:RM/RMVB,MKV,TS,AVI,VOB,MOV,WMV,MP4Picture formatFormat:BMP,JPEG,PNG,GIF etc.
Audio outputLeft and right channel output 8R / 10W horn
Background PublishingSupport background publishing files, remote setting of automatic switch, remote volume increase and decrease

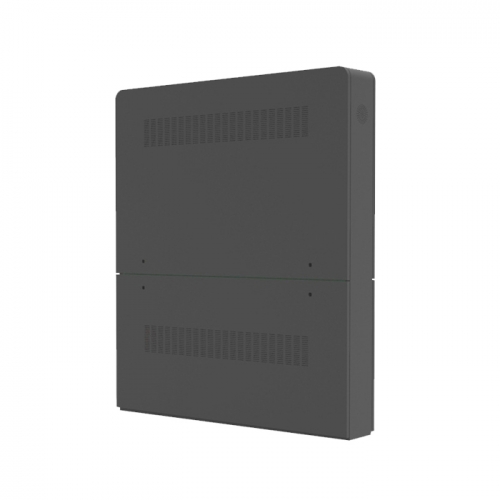

Texture of materialThe shell of the whole machine is made of 2mm galvanized plate, and the surface is sprayed with outdoor powder
Glass6mm ultra white high transparent explosion-proof toughened glass anti glare, anti reflection and light transmittance over 98%

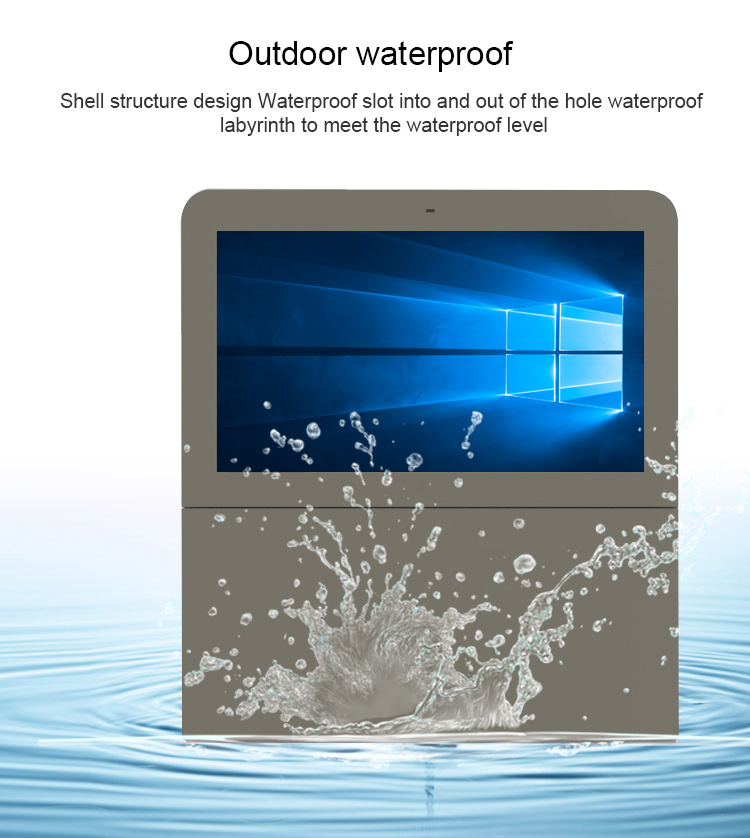

waterproofThree layer compound sealant strip, multi angle water free
Theft preventionThree level door lock protection, hidden screw design
DustproofInternal filter screen device
Rust prevention and corrosion protectionHigh strength galvanized steel plate, outdoor powder surface treatment

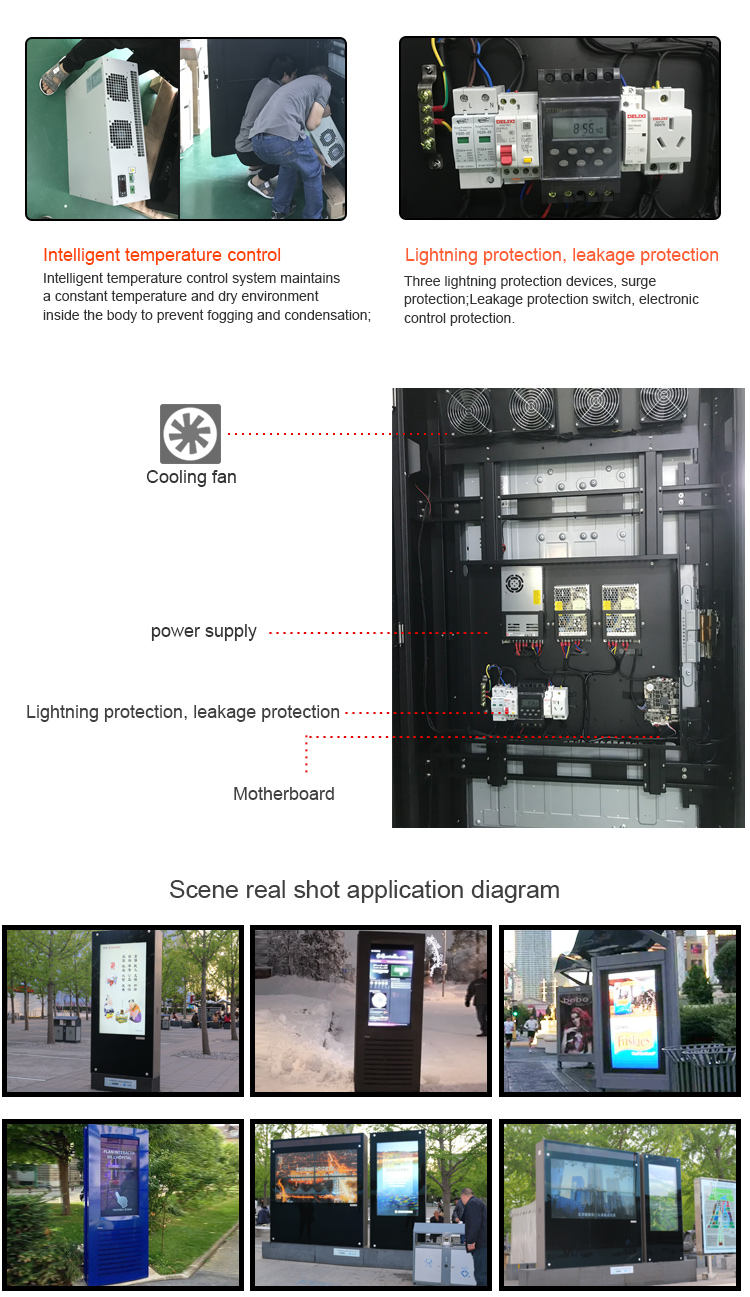

Temperature controlSupport temperature control, control fan speed at different temperatures
Leakage protectionSupport leakage protection switch
Lightning protectionBuilt in over temperature and over current protection function for high-voltage DC power supply can provide class C surge protection for photovoltaic power distribution system.
Time control protectionPower switch control. It can be preset daily or weekly 20
Open / close control at different times, and any cycle timing workCan, keyboard lock, daylight saving time and 12 / 24-hour conversion function.Brightness controlThe built-in photosensitive probe can automatically adjust the brightness of LCD display screen according to the intensity of outdoor light. The core technology of LED backlight control and sensor can improve the sensitivity of light sense transmission, effectively identify, control and adjust the brightness of LED backlight.

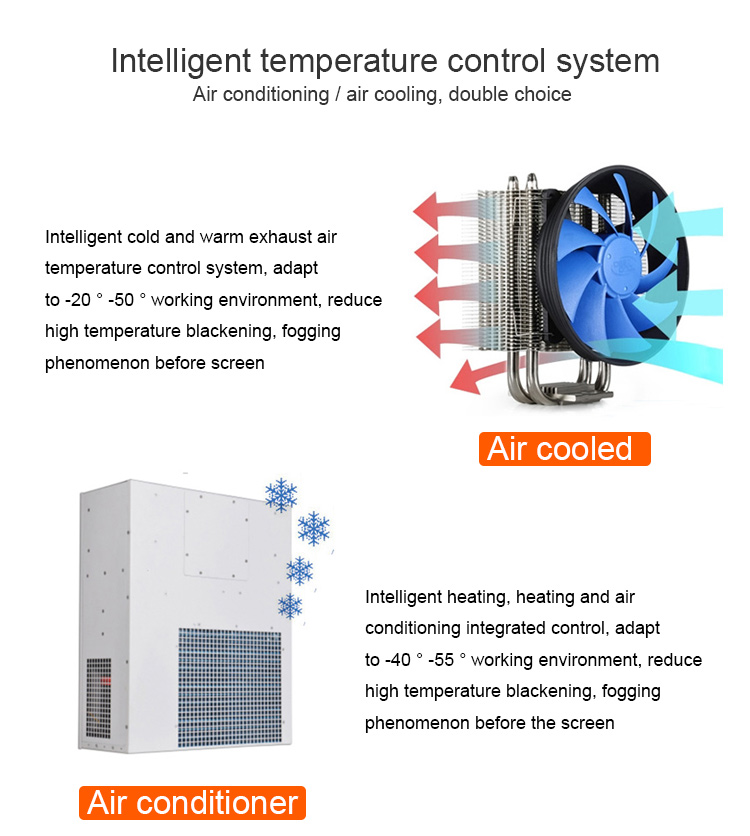

Cooling system1. Intelligent air cooling system is adopted for heat dissipation
2. Intelligent control of wind speed and energy saving of fan speed control board

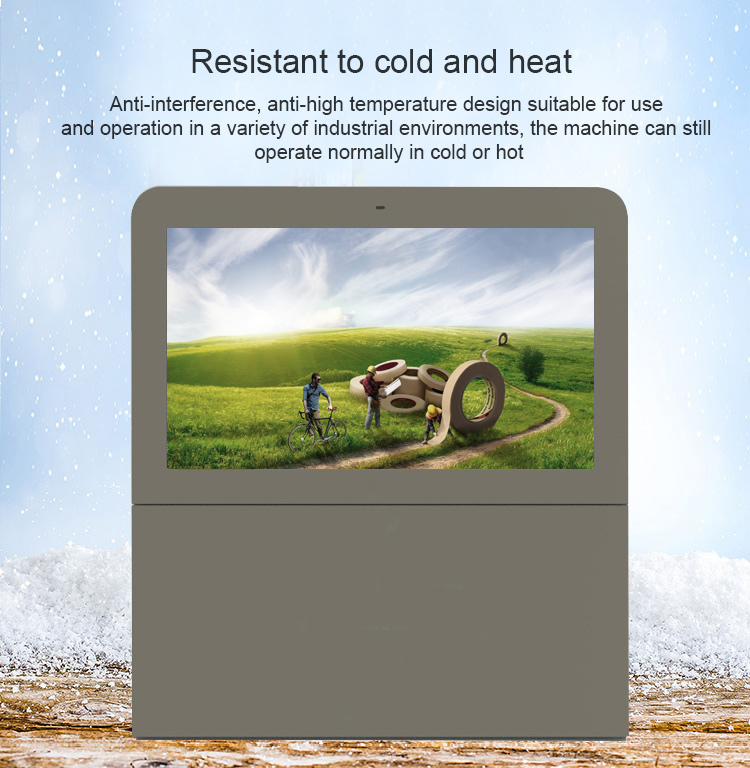

3. It can meet the requirement of no blackening of LCD screen in the environment of - 40 ℃ to 55 ℃Protection levelIP65/IP66/IP67
Why choose Shenzhen Yaimeishi Technology Co.,Ltd:1. >8-years professional manufacturing experience only in LCD digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 1-year warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers.quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
Shenzhen Yameishi Technology Co., Ltdwas founded in 2015 which is an engineering and manufacturing company focus on various advertising equipment. Including: media player, Outdoor waterproof digital signage, LCD displays advertising screen, monitors, Wireless network Ad player, Bus media player, Ad player media box, DID Video Wall etc.
Our workshop covers an area of 5000 square meters equipped with 5 modern professional production lines , over 20 senior engineers and assembly assistant and 2 professional after-sales engineers , all the staff must be trained in pre-service, the current daily output can reach to 500 units.
